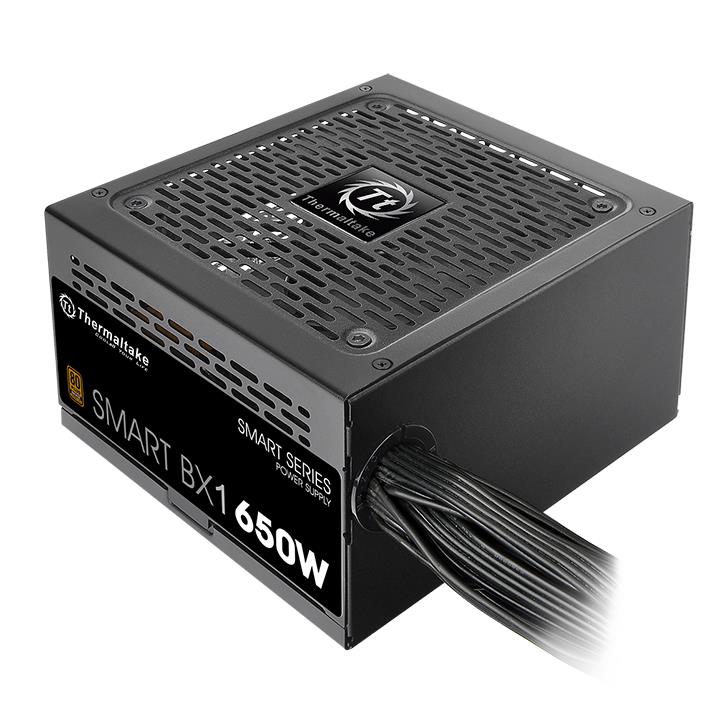

Thermaltake Smart BX1 650W 80 Plus Bronze Power Supply

Name: Thermaltake Smart BX1 650W 80 Plus Bronze Power Supply
Brand: Thermaltake
SKU: PS-SPD-0650NNSABA-1
Availability: OutOfStock

$99.00

Thermaltake Smart BX1 650W 80 Plus Bronze Non-Modular Power Supply with a 120mm fan.

Out of stock

Warehouse availabilityLIVE

QLD—

NSW—

VIC—

WA—

SA—

TAS—

ACT—

NT—

Call for corporate/edu qty purchases

GTIN: 4711246875258MPN: PS-SPD-0650NNSABA-1 SKU: PS-SPD-0650NNSABA-1 Categories: PC Parts & Components, Power Supplies Tags: 650W, 80 PLUS Bronze, Non-Modular, Power Supply, PSU, Smart BX1, Thermaltake Brand: Thermaltake

Description

Weight dimensions

Width	150 mm
Height	86 mm
Depth	140 mm

Power

AC input frequency	50/60 Hz
Combined power 5V	110 W
Max output current 5Vsb	2.5 A
Max output current -12V	0.5 A
Max output current 5V	17 A
Max output current 12V	48 A
Max output current 3.3V	23 A
Combined power 5Vsb	12.5 W
Combined power -12V	6 W
Combined power 12V	576 W
Combined power 3.3V	110 W
Power Factor Correction PFC type	Active
Total power	650 W
Peak power	80 W
AC input voltage	100 – 240 V

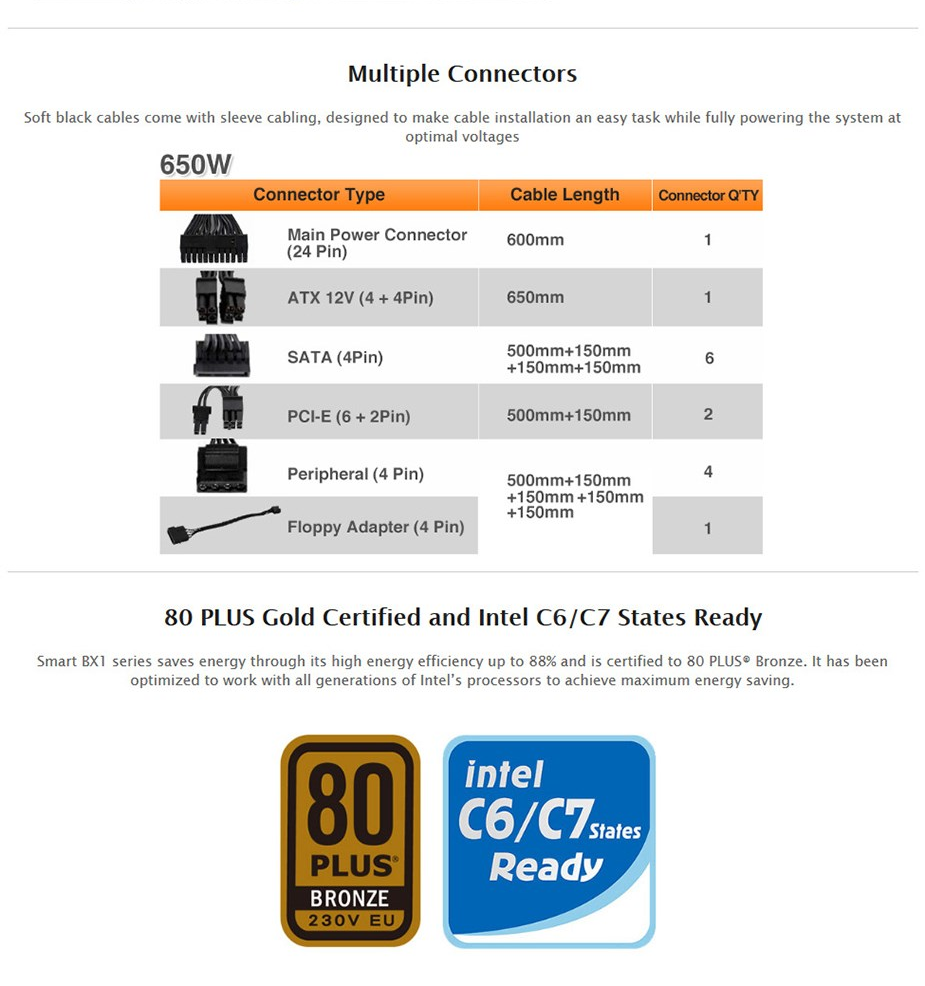

Ports interfaces

SATA power cable length	150,500 mm
Peripheral Molex power cable length	150,500 mm
PCI Express power connectors 62 pin	2
PCI Express power cable length	50 cm
CPU power connector 44 pin	Y
CPU power cable length	1 mm
PCI Express connector	Y
Motherboard power cable length	60 cm
Motherboard power connector	24-pin ATX
Number of SATA power connectors	6

Internal IO

Peripheral Molex power connectors 4-pin	4

Keyboard

Onoff switch	Y

Endurance

Mean time between failures MTBF	100000 h

Other features

Cabling type	Non-Modular

Operational conditions

Operating temperature T-T	5 – 40 °C
Storage temperature T-T	-40 – 55 °C
Operating relative humidity H-H	20 – 85%
Storage relative humidity H-H	10 – 95%

Design

Product colour	Black
Cooling type	Active
Number of fans	1 fan(s)

Performance

Purpose	PC
EPS version	2.92
ATX version	2.3
Power supply unit PSU form factor	ATX
80 PLUS certification	80 PLUS Bronze

Features

Fan diameter	12 cm
Input current	12 A

Packaging content

Cables included	CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA

Additional information

Weight	3 kg
Dimensions	26 × 20 × 10 cm
Efficiency Rating	8 plus bronze
Modular	non-modular
Fan Size	12 mm
Form Factor	atx
Warranty	5 year warranty
Brand	Thermaltake
Mpn	PS-SPD-0650NNSABA-1
Gtin	4711246875258
