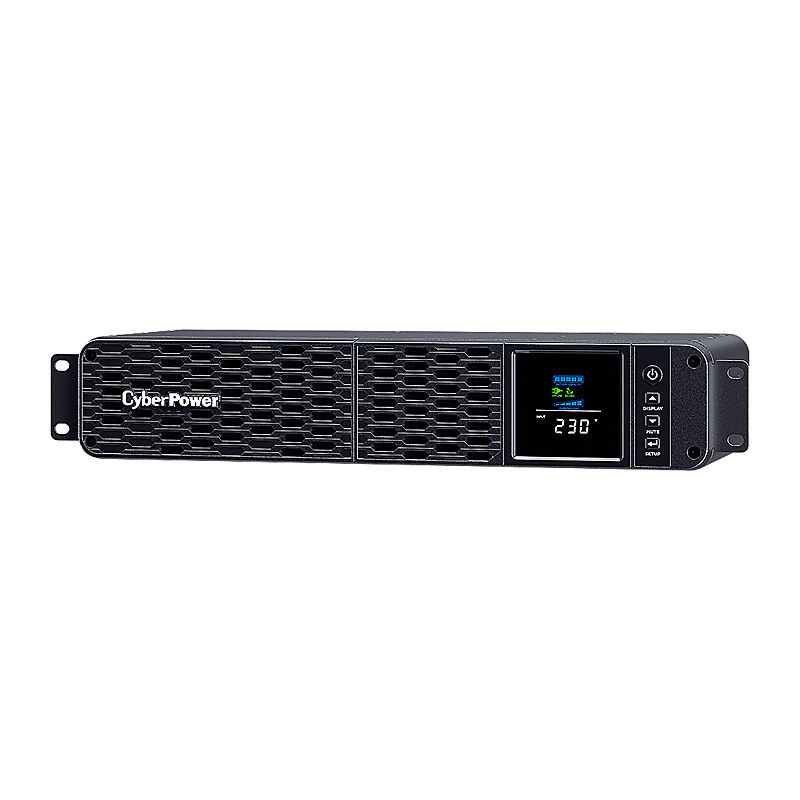

CP PFC Sinewave Series 1200VA

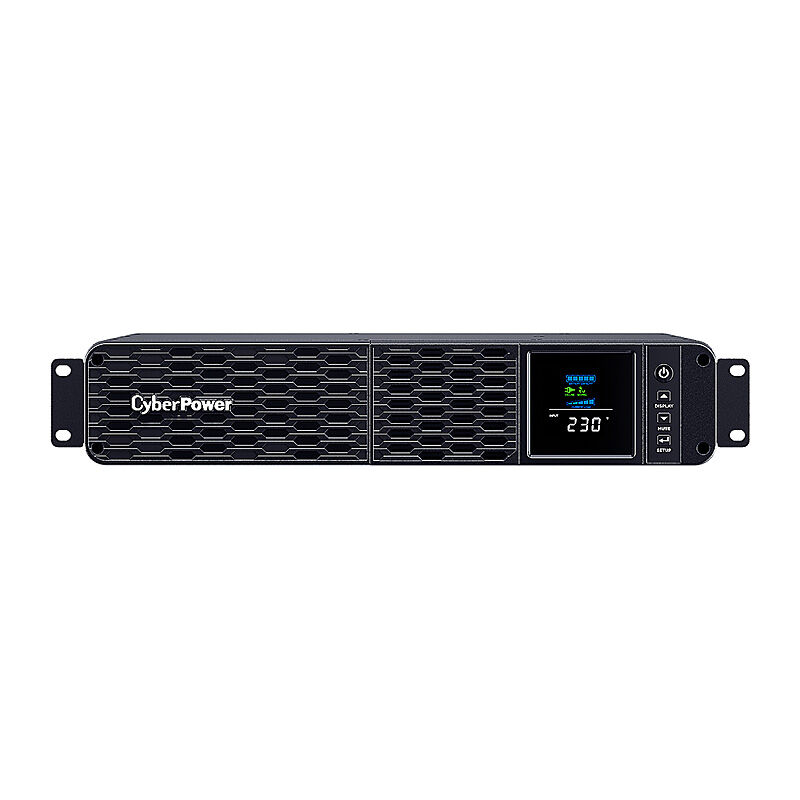

CP PFC Sinewave Series 1200VA - Image 2

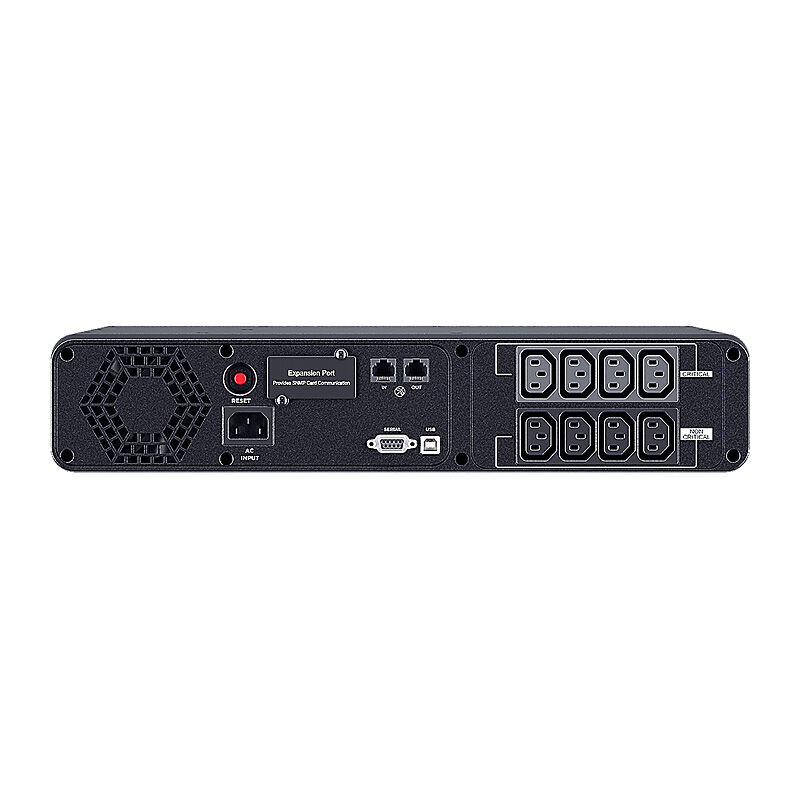

CP PFC Sinewave Series 1200VA - Image 3

CP PFC Sinewave Series 1200VA

$773.50 inc GST

Out of stock

Stock Availability (LIVE)

  • • Brisbane Warehouse ✕ Out of Stock (0)
  • • Sydney Warehouse ✕ Out of Stock (0)
  • • VIC Warehouse ✕ Out of Stock (0)
  • • WA Warehouse ✕ Out of Stock (0)
  • • SA Warehouse ✕ Out of Stock (0)

Delays may be experienced from Sydney Warehouse as warehouse is currently changing location.

Call for corporate/edu qty purchases

Same Day Shipping

Order within --:-- for same day dispatch!

Shipping cutoff time: --:--

SKU: CP1200EIPFCRM2U Category:

CyberPower Systems PFC Sinewave Series 1200VA / 720W Tower UPS - 2U -6x IEC C13 (2x Surge Protection only) 12V/7Ah*2 2 Yrs Adv. Replacement WTY Incl. internal Batteries

Additional information

Brand

Features

  • Line-interactive UPS Topology
  • Active PFC Compatible
  • Automatic Voltage Regulation (AVR)
  • Critical/Non-critical Load Outlets
  • Color LCD Panel
  • USB Connectivity Port
  • PowerPanel Management Software
  • Surge and Spike Protection
  • Network Protection
  • Energy Saving Technology
  • Pure Sine Wave Output
  • Overload Protection
  • Hot-swappable Batteries
  • LED Status Indicator
  • High-speed Ethernet Data Transmission
  • SNMP/HTTP Remote Management Capability (Optional)
  • EMI and RFI Filtration
  • Short-depth Chassis Design

Specifications

General

  • Phase: Single Phase
  • Form Factor: Rackmount
  • UPS Topology: Line-interactive
  • Energy Saving Technology: GreenPower UPS™ Bypass Technology
  • Active PFC Compatibility: Yes

Input

  • Nominal Input Voltage: 230 Vac
  • Input Voltage Range: 169 ~ 271 Vac
  • Input Frequency: 50 ± 3 Hz / 60 ± 3 Hz (Auto-sensing)
  • Rated Input Current: 10 A
  • Input Connector Type: IEC C14
  • Detachable Power Cord Plug Type: IEC C14 x1
  • Power Cord Length: 6 ft (1.8 m)

Output

  • Capacity: 1200 VA / 720 W
  • On Battery Waveform: Pure Sine Wave
  • On Battery Voltage: 230 ± 5%
  • On Battery Frequency: 50 ± 1% / 60 ± 1%
  • Power Factor: 0.6
  • Automatic Voltage Regulation: Single Boost
  • Overload Protection: Internal Current Limiting, Circuit Breaker
  • Outlets Total: 8 (IEC C13)
  • Battery & Surge Protected: 8
  • Surge-Only Protected: 0
  • Critical Load (CL): 4
  • Non-critical Load (NCL): 4

Battery

  • Runtime at Half Load: 11.6 min
  • Runtime at Full Load: 3.4 min
  • Typical Recharge Time: 8 hours (90% recovery)
  • User-replaceable: Yes
  • Hot-swappable: Yes
  • Battery Type: Sealed Lead-acid
  • Battery Cartridge: RBP0181 (1 pc)

Surge Protection & Filtering

  • Surge Suppression: 900 Joules
  • EMI/RFI Filtration: Yes
  • Network Protection RJ45: 1-in, 1-out

Management & Communications

  • LCD Panel: Color LCD (Power, Battery, Load, Fault & Warning)
  • LCD Settings: Alarm, Input & Output
  • LED Indicators: Power On
  • USB Port: 1 (HID Compliant)
  • Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
  • Management Cable: Power Cord x1, USB Cable x1
  • Ethernet Data Transmission Speed: Up to 1Gbps
  • Software: PowerPanel Business (Recommended)
  • SNMP/HTTP Remote Monitoring: Optional (RMCARD205)
  • Cloud Service: PowerPanel (90 Days Free Trial)

Physical

  • Enclosure: Plastic
  • Color: Black
  • Rackmount Ears: Yes
  • Size (UPS Module): 433 x 86 x 274 mm
  • Weight: 11.59 kg
  • Shipping Dimensions: 523 x 162 x 374 mm
  • Shipping Weight: 12.86 kg

Environmental

  • Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
  • Operating Humidity: 0 ~ 95% (Non-condensing)
  • Operating Elevation: 0–3,000 m (0–9,843 ft)
  • Storage Temperature: -15 ~ 45 °C (5 ~ 113 °F)
  • Storage Humidity: 0 ~ 95% (Non-condensing)
  • Storage Elevation: 0–15,000 m (0–49,213 ft)
  • Online Thermal Dissipation: 17.1 BTU/hr

Certifications

  • CE
  • RoHS Compliant
