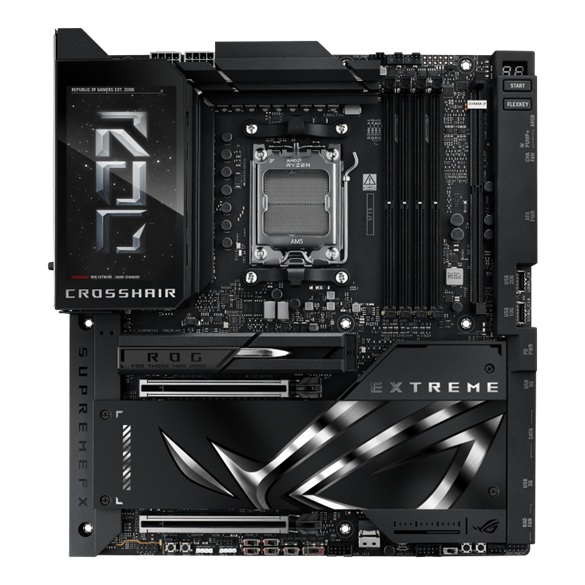

ASUS AMD ROG CROSSHAIR X870E EXTREME (AM5) E-ATX Motherboard

Description

ASUS AMD ROG CROSSHAIR X870E EXTREME (AM5) E-ATX Motherboard

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.

Specifications

• Model: ROG CROSSHAIR X870E EXTREME
• Socket: AM5
• CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD X870E
• Memory: 4 x DIMM slots, max. 256GB, DDR5
• Graphics: 1 x HDMI port, 2 x USB4 (40Gbps) ports support USB Type-C display outputs
• Expansion Slots: 2 x PCIe 5.0 x16 slots with Q-Release Slim
• Storage: Supports up to 5 x M.2 slots, 1 x SlimSAS connector, and 4 x SATA 6Gb/s ports
• Ethernet: 1 x Realtek 5Gb Ethernet, 1 x Marvell® AQtion 10Gb Ethernet
• Wireless & Bluetooth: Wi-Fi 7 (802.11be), Bluetooth® v5.4
• BIOS: 2 x 256 Mb Flash ROM, UEFI AMI BIOS
• Form Factor: E-ATX Form Factor (30.5 cm x 27.7 cm)
