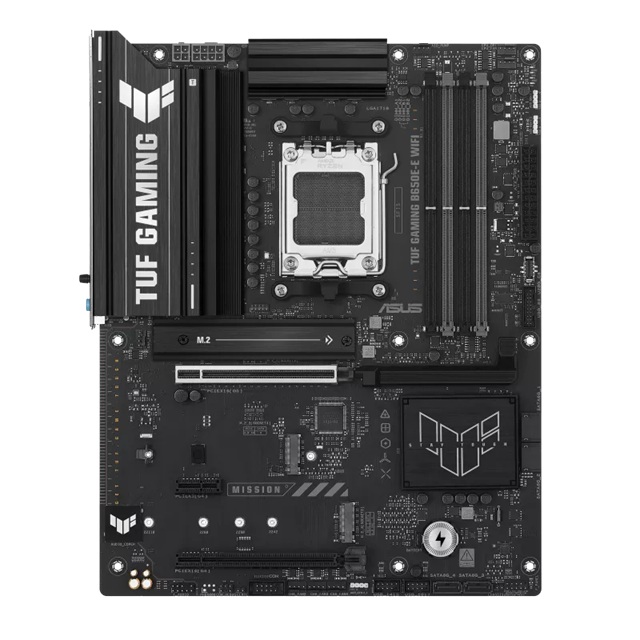

ASUS AMD TUF GAMING B650E-E WIFI (AM5) ATX Motherboard

Description

ASUS TUF GAMING B650E-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. This platform delivers the power and connectivity that advanced AI PC applications demand.

SPECIFICATIONS

Model

TUF GAMING B650E-E WIFI

Socket

Socket AM5

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Supports up to AMD 200W CPU

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Graphics

• 1 x DisplayPort
• 1 x HDMI™ port

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B650 Chipset

• 1 x PCIe 4.0 x16 slot (supports x1 mode)
• 1 x PCIe 4.0 x1 slot

Storage

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

AMD B650 Chipset

• M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 6E
• 2×2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band
• Bluetooth® v5.3

USB

Rear USB (Total 8 ports)

• 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®)
• 3 x USB 5Gbps ports (3 x Type-A)
• 3 x USB 2.0 ports (3 x Type-A)

Front USB (Total 7 ports)

• 1 x USB 20Gbps connector (supports USB Type-C®)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

Audio Features

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Form Factor

ATX Form Factor
12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Additional information

Socket	am5
Form Factor	atx
Chipset	amd b650
Max Ram	256 gb
Ram Type	DDR5
Ram Slots	4
Connectivity	wi-fi 6e, bluetooth 5.3
Ethernet	1 x realtek 2.5gb ethernet
Audio	realtek 7.1 surround sound high definition audio codec
Expansion Slots	1 x pcie 5.0 x16, 1 x pcie 4.0 x16, 1 x pcie 4.0 x1
Storage Slots	3 x m.2, 4 x sata 6gb/s
Bios	256 mb flash rom, uefi ami bios
Brand	ASUS
Mpn	TUF GAMING B650E-E WIFI
Gtin	4711387992500
