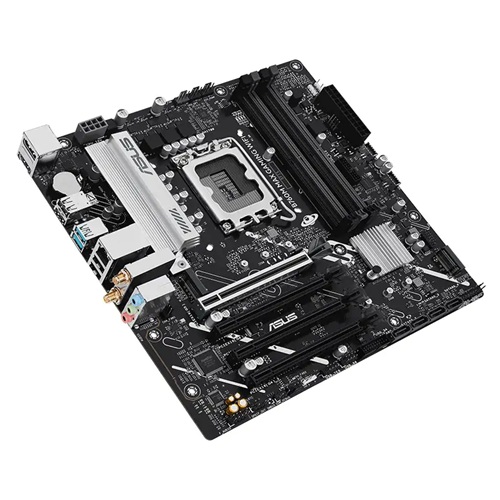

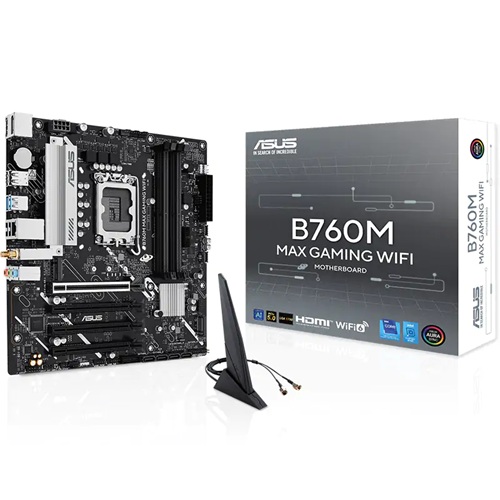

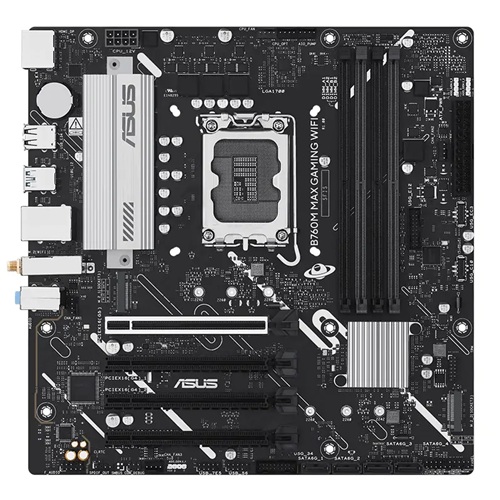

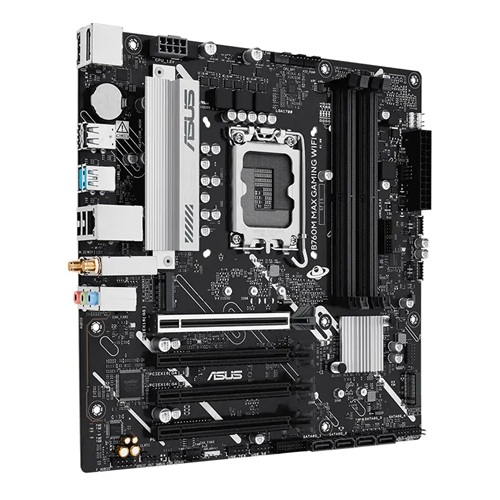

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard

Description

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard

Designed for the future of AI computing, the ASUS B760M MAX GAMING WIFI provides the power and connectivity needed for demanding AI applications. Featuring the Intel® LGA 1700 socket, it is ready for 14th, 13th, and 12th Gen Intel® Core™ processors.

Key Features

• Ready for Advanced AI PC: Built with high-performance power design and robust connectivity.
• Intel® LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Intel® Core™ processors, Pentium® Gold, and Celeron® Processors.
• Ultrafast Connectivity: Includes PCIe 5.0, DDR5 support, three M.2 slots, Realtek 1Gb Ethernet, Wi-Fi 6, rear USB 10Gbps, and front USB 5Gbps Type-C®.
• Comprehensive Cooling: Features a VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+.
• ASUS OptiMem II: Careful trace routing and via placement, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers easily sync with Aura Sync-capable hardware.
• CEC Tier II ready

Specifications

• Chipset: Intel® B760 Chipset
• Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC) non-ECC, un-buffered memory with Dual Channel Architecture and XMP support
• Expansion Slots: 1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x16 slots (support x1 mode)
• Storage: 3 x M.2 slots, 4 x SATA 6Gb/s ports
• Networking: Realtek 1Gb Ethernet, Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth® v5.3
• Form Factor: mATX Form Factor (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm)
