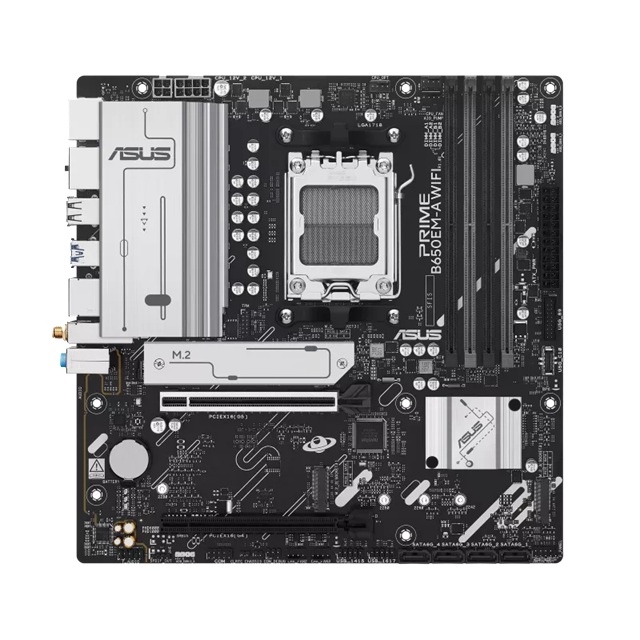

ASUS PRIME B650EM-A WIFI AM5 mATX Motherboard

Description

ASUS AMD PRIME B650EM-A WIFI (AM5) mATX Motherboard

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications

• AM5 Socket for AMD Ryzen™ Desktop Processors
• Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C® support
• Comprehensive Cooling: VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting

PRIME B650EM-A WIFI

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650EM-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications

• Model: PRIME B650EM-A WIFI
• Socket: AM5
• CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors (Supports up to AMD 170W CPU)
• Chipset: AMD B650 Chipset
• Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM, Dual channel memory architecture, Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)
• Graphics: 2 x DisplayPort, 1 x HDMI™ port
• Expansion Slots: AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot. AMD Ryzen™ 8000 Series: 1 x PCIe 4.0 x16 slot. AMD B650 Chipset: 1 x PCIe 4.0 x16 slot
• Storage: Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports (M.2_1 Key M type 2280 PCIe 5.0 x4, M.2_2 Key M type 2280 PCIe 4.0 x4, M.2_3 Key M type 2242/2260/2280 PCIe 4.0 x4)
• RAID Support: AMD RAIDXpert2 Technology (Ryzen™ 9000: RAID 0/1/5/10; Ryzen™ 8000: RAID 0/1; Ryzen™ 7000: RAID 0/1/10)
• Ethernet: 1 x Realtek 2.5Gb Ethernet with ASUS LANGuard
• Wireless & Bluetooth: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2.4/5GHz frequency band, Bluetooth® v5.4
• USB: Rear USB (2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A). Front USB (1 x USB 5Gbps Type-C connector, headers for additional ports)
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC with audio shielding, premium audio capacitors, and dedicated audio PCB layers
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows® 11, Windows® 10 64-bit
• Form Factor: mATX Form Factor (24.4 cm x 24.4 cm)
