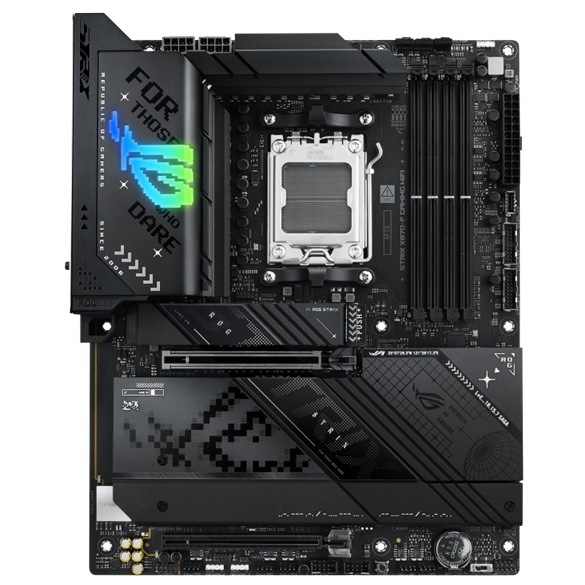

ASUS ROG STRIX X870-F GAMING WIFI AM5 ATX Motherboard

Description

The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen™ 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4® ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.

Specifications

Model

• ROG STRIX X870-F GAMING WIFI

CPU & Chipset

• Socket AM5
• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• AMD X870 Chipset

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Graphics & Video Outputs

• 1 x DisplayPort
• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
• AMD X870 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
• M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
• 2 x SATA 6Gb/s ports

Networking

• 1 x Intel® 2.5Gb Ethernet
• ASUS LANGuard
• Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 320MHz bandwidth
• Bluetooth® v5.4

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover

Form Factor

• ATX Form Factor: 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
