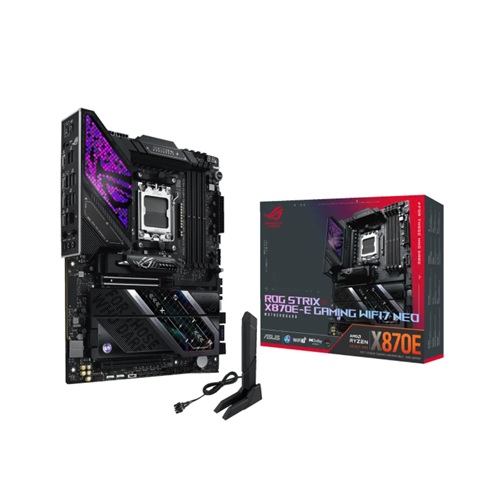

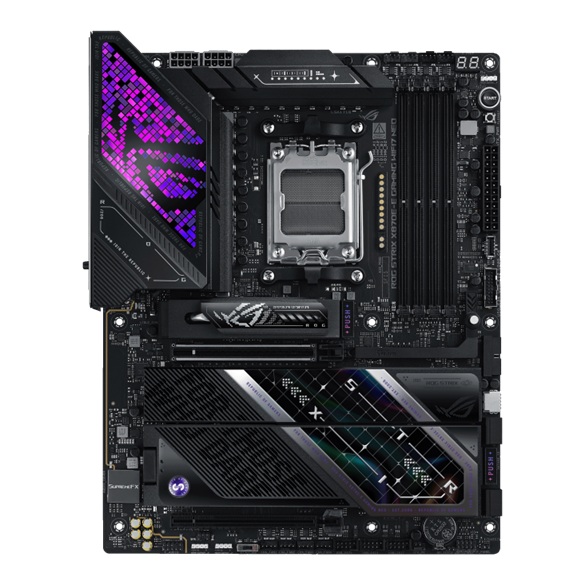

ASUS ROG STRIX X870E-E GAMING WIFI

Description

ASUS AMD ROG STRIX X870E-E GAMING NEO

The ASUS ROG Strix X870E-E Gaming WiFi is an advanced AM5 motherboard designed to harness the full power of AMD Ryzen™ 9000, 8000, and 7000 series desktop processors. Built on the high-end AMD X870E chipset, it delivers elite performance, cutting-edge connectivity, and extensive expansion capabilities for enthusiasts and gamers.

CPU & Chipset

• CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD X870E

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8600+ MT/s (OC) with Ryzen™ 9000 Series Processors, 9600+ MT/s (OC) with Ryzen™ 8000 Series Processors, and 8000+ MT/s (OC) with Ryzen™ 7000 Series Processors
• ECC and Non-ECC Un-buffered DIMM
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™), DIMM Fit, DIMM Fit Pro, NitroPath DRAM Technology, and ASUS Enhanced Memory Profile (AEMP)

Graphics & Display

• 1 x HDMI™ port
• 2 x USB4® (40Gbps) ports supporting USB Type-C® display outputs

Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series: 1 x PCIe 5.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8700 & 8600 & 8400 Series: 1 x PCIe 4.0 x16 slot (supports x8 mode)
• AMD Ryzen™ 8500 & 8300 Series: 1 x PCIe 4.0 x16 slot (supports x4 mode)
• AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

• Total supports up to 5 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2 slots feature robust PCIe 5.0 and PCIe 4.0 support depending on the installed CPU generation
• RAID support: AMD RAIDXpert2 Technology for RAID 0/1/5/10

Ethernet & Networking

• 1 x Realtek® 5Gb Ethernet with ASUS LANGuard

BIOS & Manageability

• 64MB (512Mb) Flash ROM, UEFI AMI BIOS
• WOL by PME, PXE

Form Factor

• ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
