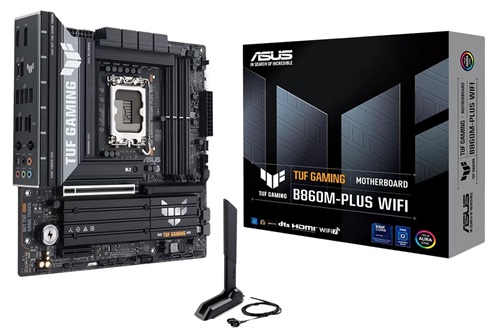

ASUS TUF GAMING B860M-PLUS WIFI LGA1851 mATX Motherboard

Description

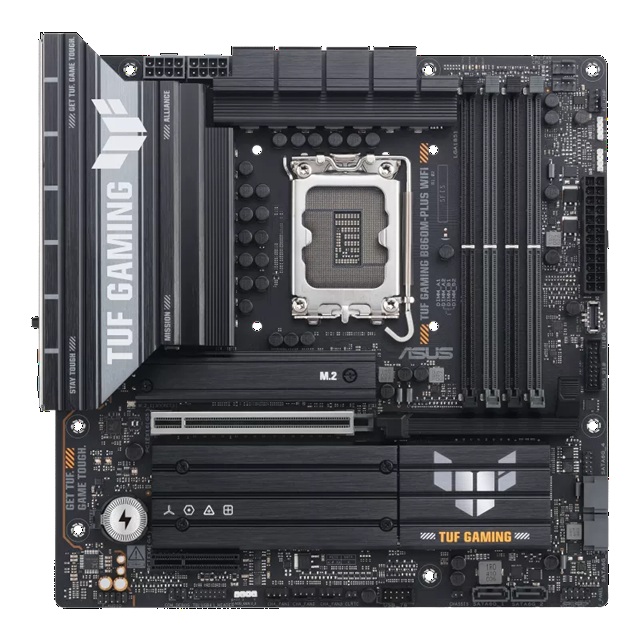

ASUS TUF GAMING B860M-PLUS WIFI

The ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specification

• Model: TUF GAMING B860M-PLUS WIFI
• Chipset: Intel® B860 Chipset
• BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 11 (22H2 & later)

CPU

Support Intel® Core™ Ultra Processors (Series 2) ,LGA1851

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
• Dual Channel Memory Architecture
• DIMM Fit
• Supports Intel® Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMPIII)

Graphics

• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output

Expansion Slots

Intel® Core™ Ultra Processors (Series 2):

• 1 x PCIe 5.0 x16 slot

Intel® B860 Chipset:

• 1 x PCIe 4.0 x4 slot

Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

• M.2_1 slot (Key M): type 2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M): type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_3 slot (Key M): type 2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

Wireless & Bluetooth

• Wi-Fi 7
• 2×2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth® v5.4

Form Factor

• mATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
