DeepCool CG580 4F Panoramic ATX Mid-Tower Case

Description

DeepCool CG580 4F Panoramic ATX Mid-Tower Case

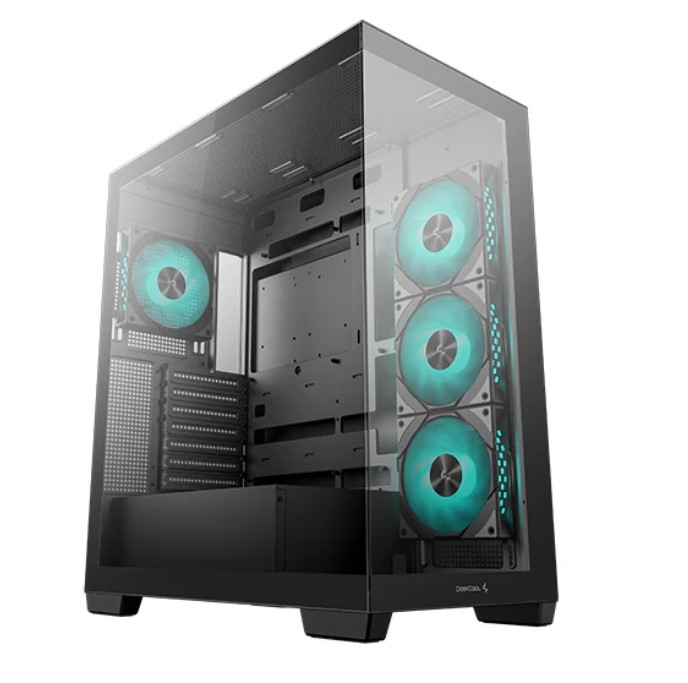

The CG580 4F is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270° view, allowing builders to fully appreciate their hardware.

Technical Specifications

• Product Dimensions: 437×235×501mm (L×W×H)
• Net Weight: 8.7 kg
• Materials: ABS+SGCC+Tempered Glass
• Motherboard Support: ITX / Micro-ATX / ATX / ATX (Rear Connector) / Micro-ATX (Rear Connector)
• Front I/O Ports: USB3.0×2, USB 3.2 Gen 2 Type-C×1, Audio & Mic×1
• 3.5″ Drive Bays: 2
• 2.5″ Drive Bays: 2
• Expansion Slots: 7 Slots
• Pre-Installed Fans: Side: 3×120mm (PWM+ARGB Reverse Blade), Rear: 1×120mm (PWM+ARGB)
• Fan Support: Front: NA, Top: 3×120mm / 2x140mm, Side: 3x120mm, Rear: 1×120mm / 1x140mm, Bottom: 1×120mm (3.5 HDD / 120 FAN: Choose one of two), PSU Shrouded: 2×120mm
• Radiator Support: Front: NA, Top: 120/140/240/280/360mm, Side: 120/240/360mm, Rear: 120/140mm
• CPU Cooler Height Limit: 176 mm
• GPU Length Limit: 410 mm (limited to 262 mm if a 360mm radiator and fan set are mounted on the side)
• Power Supply Type: ATX PS2 (maximum length: 210 mm)
