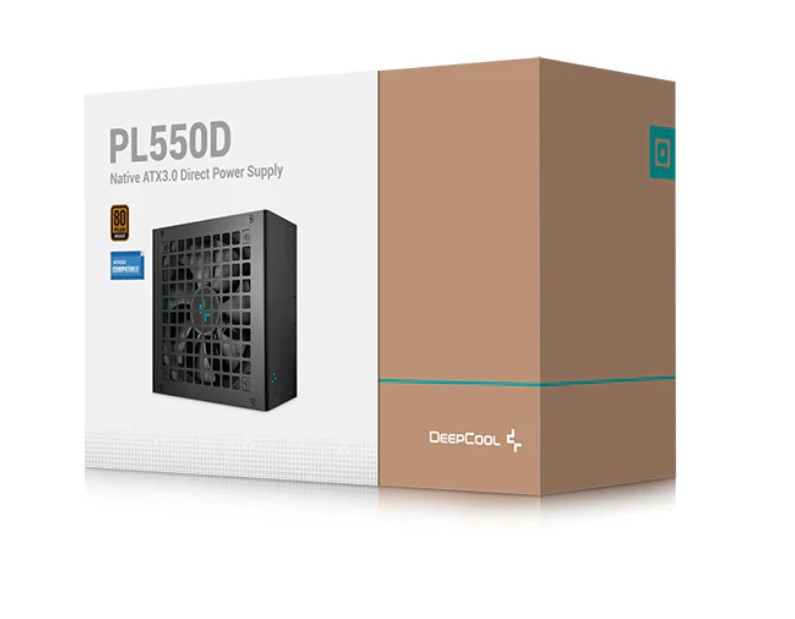

DeepCool PL550D 550W 80+ Bronze Certified Non-Modular ATX Power Supply
$82.21
DeepCool PL550D 550W 80+ Bronze Certified Non-Modular ATX Power Supply with 120mm hydro-bearing fan and ATX3.0 compliance.
Out of stock
Warehouse availabilityLIVE
QLD—
NSW—
VIC—
WA—
SA—
TAS—
ACT—
NT—
Call for corporate/edu qty purchases
Description
The PL550D updates DeepCool non-modular PSUs with a 12VHPWR cable and brings them into compliance with INTEL’s ATX3.0 standard. These units are 80 PLUS Bronze-verified, come with a 120mm hydro-bearing fan, and will provide stable power for years to come.
Technical Spec
- Type: ATX12V V3.0
- Product Dimensions: 150×140×86mm (W x L x H)
- Efficiency certification: 80Plus Bronze
- Fan Size: 120mm
- Fan Bearing: HYB (Hydro Bearing)
- Topology: Active PFC+DC to DC
- Capacitors: Chinese Electrolytic Capacitors
- Power Good Signal: 100-150ms
- Hold Up Time: ≥16ms
- Efficiency: ≥85% Under Typical Load (50% Loading)
- Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Operation Temperature: 0 – 40°C
- Regulatory: CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/TUV-RH
- ErP Regulation: ErP 2014
Additional information
| Atx12v Version | |
|---|---|
| Efficiency Rating | |
| Fan Size | |
| Bearing Type | |
| Topology | |
| Hold Up Time | |
| Energy Efficiency | |
| Surge Protection | |
| Operating Temperature | |
| Certifications | |
| Power Output | |
| Brand | |
| Mpn | |
| Gtin |
