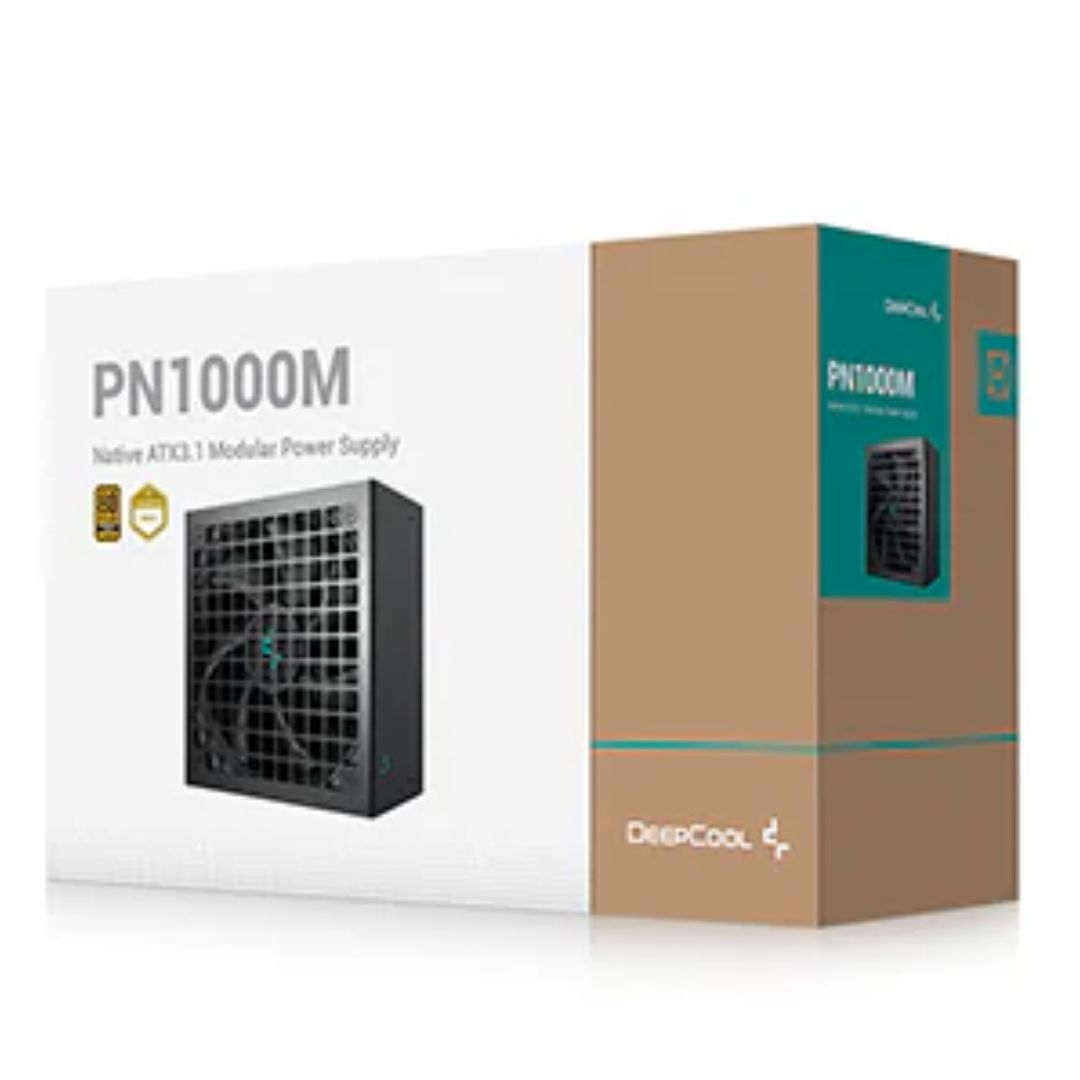

DeepCool PN1000M Gamer Storm 80+ Gold Black Fully Modular Power Supply

Description

DeepCool PN1000M 1000W 80+ Gold Fully Modular Power Supply

The DeepCool PN1000M is a high-performance power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standards. Featuring a dedicated 12V-2×6 cable and 5 EPS/PCIe ports, the PN1000M delivers reliable and stable power for modern high-power computer components.

Future Proof Design

Engineered to support transient power events, the PN1000M can provide up to twice the total system power for 0.1 ms, ensuring random power spikes are handled smoothly. It offers consistent power delivery for both legacy and next-generation PC setups.

Reliable Components

Equipped with a primary Japanese electrolytic capacitor, active PFC, half-bridge SRC LLC topology, and DC-to-DC conversion, this power supply maintains a hold-up time of ≥ 16 ms even under an 80% heavy load.

PCI-E 5.1 Ready

Includes a high-grade 105°C-resistant 16AWG copper-core 12V-2×6 cable, capable of supplying up to 600W of power to high-end GPUs.

Specifications

• Type: ATX12V V3.1
• Product Dimensions: 150 × 150 × 86 mm (W x L x H)
• Efficiency Certification: 80 PLUS Gold
• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• Topology: Active PFC + Half Bridge SRC LLC + DC to DC
• Capacitors: Japanese Bulk Capacitor
• Power Good Signal: 100-150 ms
• Hold Up Time: ≥ 16 ms (80% Load)
• Efficiency: ≥ 90% Under Typical Load (50% Loading)
• Protection Features: OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO
• Operation Temperature: 0 – 40°C
• Regulatory Certifications: CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC / BIS
• ErP Regulation: ErP 2014
• MTBF: 100,000 Hours
