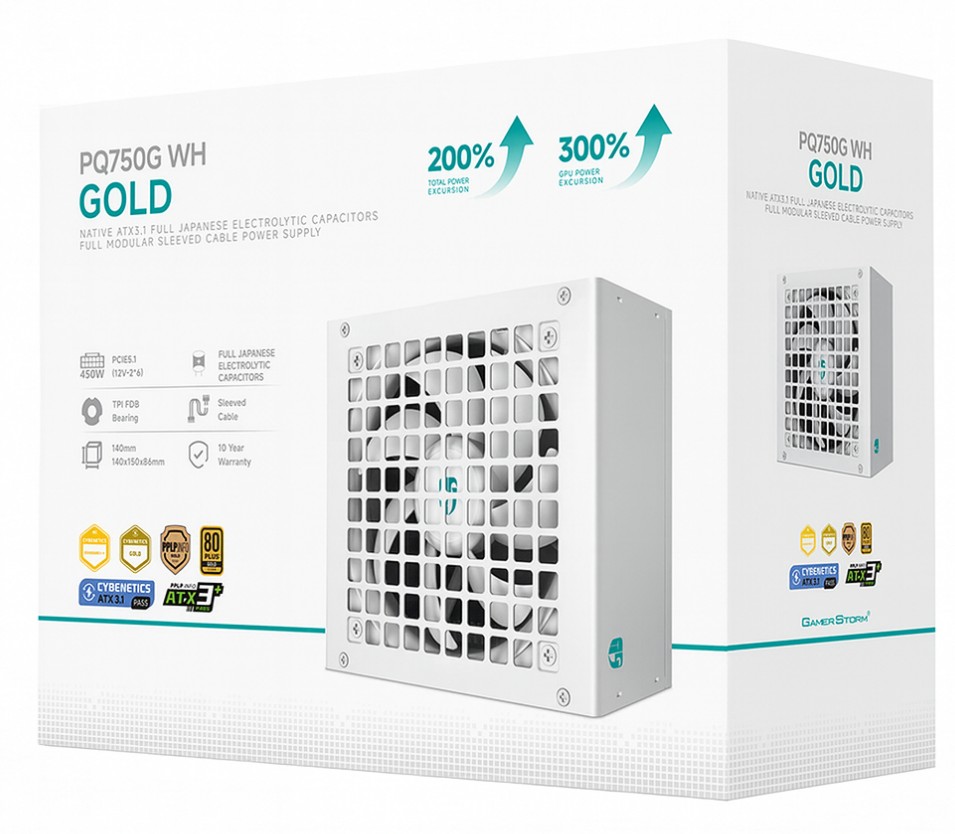

DeepCool PQ750G WH 750W 80+ Gold Fully Modular ATX Power Supply

Description

DeepCool PQ750G WH 750W Gamer Storm 80+ Gold/Cybenetics Fully Modular ATX Power Supply

The DeepCool PQ-G WH Series power supply delivers high-efficiency power to your PC system with fully modular cabling. Certified with 80 PLUS Gold, Cybenetics Gold, and PPLP Gold standards, the PQ750G WH ensures reliable and quiet operation thanks to its fluid dynamic bearing fan and premium full Japanese electrolytic capacitors.

Technical Specifications

• Total Output: 750W
• Type: ATX12V V3.1
• Product Dimensions: 150×140×86 mm (W x L x H)
• Efficiency Certification: 8 Plus Gold/Cybenetics Gold/PPLP Gold
• Fan Size: 120×120×25 mm
• Fan Bearing: FDB (Fluid Dynamic Bearing)
• Topology: Active PFC + Half Bridge SRC LLC + DC to DC
• Capacitors: Full Japanese Electrolytic Capacitors
• Power Good Signal: 100-150ms
• Hold Up Time: ≥16ms Full load
• Efficiency: ≥90% Under Typical Load (50% Loading)
• Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
• Operation Temperature: 0-40°C
• MTBF: 100,000 Hours
