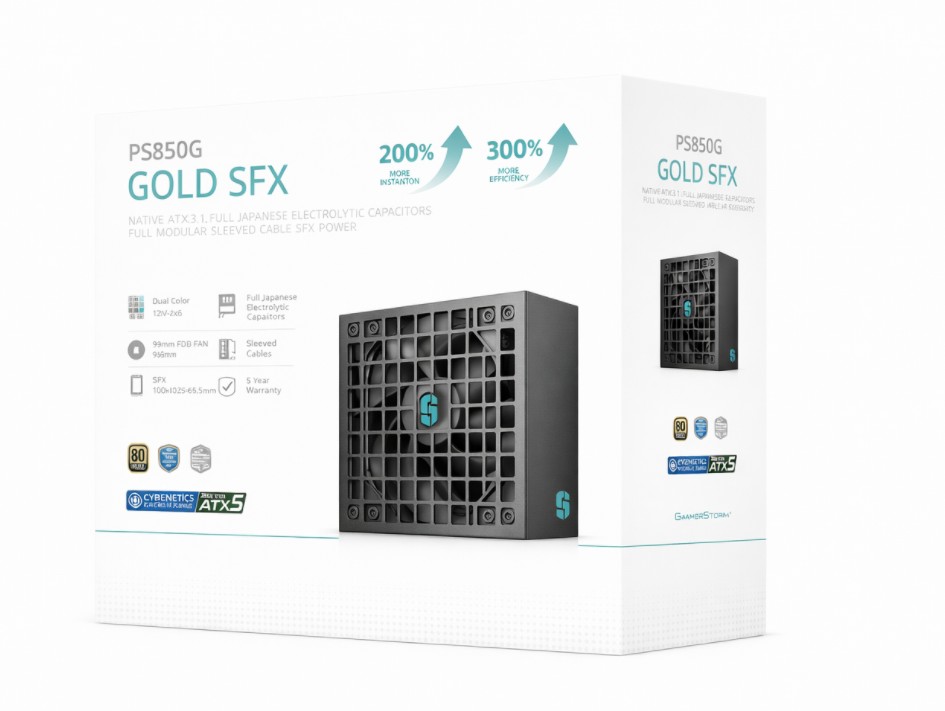

DeepCool PS850G 850W SFX Power Supply
$200.33
DeepCool PS850G 850W SFX Power Supply with Full Japanese Electrolytic Capacitors, Cybenetics Platinum / PPLP Gold efficiency, and FDB fan.
25 in stock
Warehouse availabilityLIVE
QLD—
NSW1
VIC18
WA—
SA—
TAS—
ACT—
NT—
Call for corporate/edu qty purchases
Description
DeepCool PS850G 850W Power Supply
The DeepCool PS850G is a high-performance power supply designed for compact builds, featuring SFX12V V4.1 & ATX12V V3.1 standards, full Japanese electrolytic capacitors, and Cybenetics Platinum / PPLP Gold efficiency.
Technical Specifications
- Model: PS850G
- Model No: PS850G-FE
- Total Output: 850W
- Type: SFX12V V4.1 & ATX12V V3.1
- Product Dimensions: 125×100×63.5mm (W x L x H)
- Efficiency Certification: Cybenetics Platinum / PPLP Gold
- Fan Size: 92x92x20mm (W x L x H)
- Fan Bearing: FDB (Fluid Dynamic Bearing)
- Topology: Active PFC + Half Bridge SRC LLC + DC to DC
- Capacitors: Full Japanese Electrolytic Capacitors
- Power Good Signal: 100-150ms
- Hold Up Time: ≥16ms (80% Load)
- Efficiency: ≥90% Under Typical Load (50% Loading)
- Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
- Operation Temperature: 0~40°C
- Regulatory: CE/CCC/TUV-RH/KC/RCM/CAN ICES(B)/NMB(B)/EAC
- Erp Regulation: ErP 2014
- Environment Protection: WEEE/RoHS/Triman/EAC RoHS
- MTBF: 100,000 Hours
- Warranty: 5 Years
