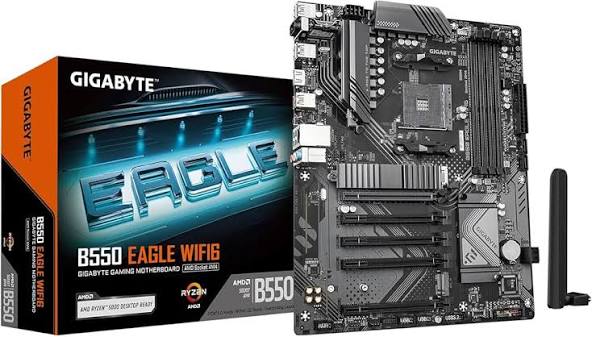

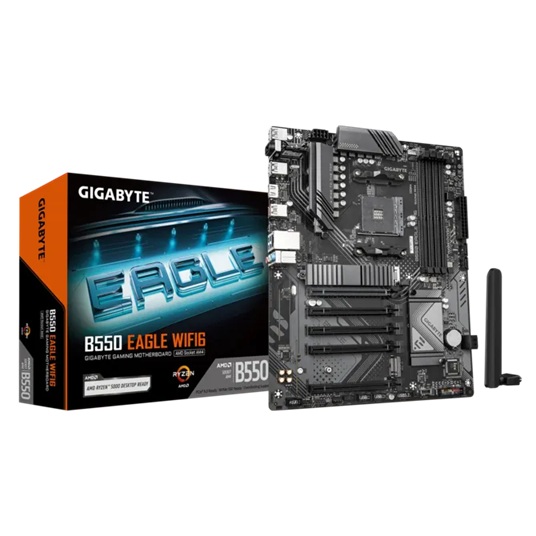

Gigabyte B550 EAGLE WIFI6 AMD ATX Motherboard

Description

High-performance ATX motherboard powered by the AMD B550 chipset, designed for AMD Ryzen™ processors and modern connectivity.

Key Features

• Form Factor: ATX (30.5 × 24.4 cm)
• Socket / CPU Support: AM4 (Supports AMD Ryzen™ 3000, 3000G, 4000G, 5000, and 5000G Series Processors)
• Chipset: AMD B550
• Memory: 4× DDR4 DIMM slots, supporting up to 128 GB, dual-channel, 2133–3200 MT/s, XMP support, ECC & Non-ECC unbuffered
• Graphics: Integrated AMD Radeon Graphics (CPU-dependent), 1× HDMI 2.1 supporting up to 4K@60Hz, max shared memory 16 GB
• Expansion Slots: 1× PCIe x16 slot (PCIe 4.0 for Ryzen 3000/5000; PCIe 3.0 for G-Series), 4× PCIe 3.0 x1 slots
• Storage: 2× M.2 slots (PCIe 4.0/3.0, CPU-dependent), 4× SATA 6Gb/s ports, supporting RAID 0, 1, and 10 (NVMe & SATA)
• Networking: Realtek Gigabit LAN, Wi-Fi 6, Bluetooth 5.3
• Audio: Realtek HD Audio, up to 7.1-channel support
• USB: USB-C (rear & header), USB 3.2 Gen 2 / Gen 1, USB 2.0
• Internal Headers: 24-pin ATX, 8-pin CPU power, CPU fan + pump header, 3× system fan headers, RGB & ARGB headers, TPM header, Clear CMOS jumper
• Back Panel I/O: HDMI, USB-C, USB 3.2, USB 2.0, RJ-45 LAN, audio jacks, Q-Flash Plus button
• BIOS: AMI UEFI, 128 Mbit flash, Q-Flash & Q-Flash Plus
• OS Support: Windows 10 / 11 (64-bit)
