Gigabyte B550M H ARGB Micro-ATX Motherboard

Description

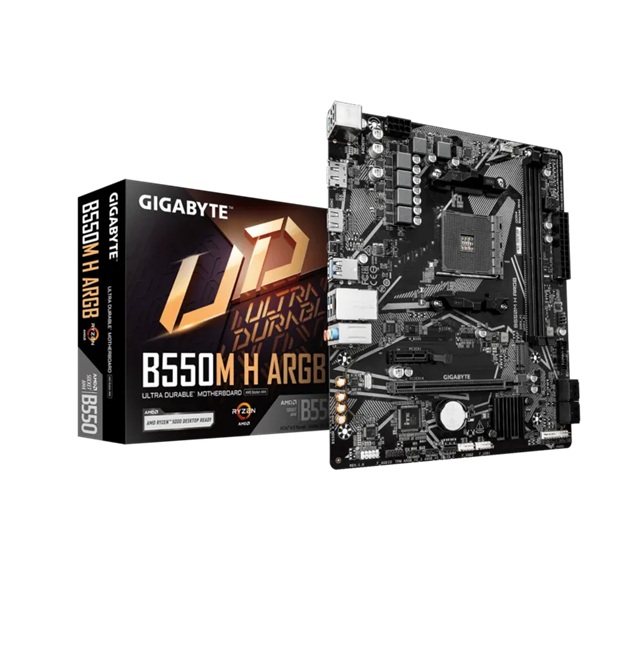

Gigabyte B550M H ARGB Micro-ATX AMD B550 Motherboard

The Gigabyte B550M H ARGB is a reliable Micro-ATX motherboard designed for AMD Ryzen processors, featuring AM4 support, PCIe 4.0, DDR4 memory support up to 5100MHz (OC), HDMI 2.1, DisplayPort 1.4, M.2 storage, and Gigabit LAN.

Specifications

• Socket / CPU: AM4 (Supports Ryzen 3000 / 4000G / 5000 / 5000G)
• Chipset: AMD B550
• Memory: 2x DDR4, up to 64 GB (Dual-Channel), 2133–5100 MHz (OC), XMP support, ECC (non-ECC mode) / Non-ECC
• Integrated Graphics: DisplayPort 1.4 (up to 5K@60Hz), HDMI 2.1 (up to 4K@60Hz), Max shared memory: 16 GB
• Expansion Slots: 1x PCIe x16 (Gen 4.0 / 3.0), 1x PCIe 3.0 x1
• Storage: 1x M.2 (PCIe 4.0 / 3.0), 4x SATA 6Gb/s, RAID 0 / 1 / 10
• Networking: Realtek Gigabit LAN
• Audio: Realtek HD Audio, up to 7.1-channel
• USB: 4x USB 3.2 Gen 1 (rear), USB 3.2 Gen 1 & USB 2.0 headers
• Internal Headers: 24-pin ATX, 8-pin CPU power, CPU fan + 2x system fan, RGB Gen2 & RGB headers, TPM, Clear CMOS
• Back Panel I/O: DisplayPort, HDMI, USB 3.2 Gen 1, USB 2.0, Q-Flash Plus button, RJ-45 LAN, Audio jacks
• BIOS: AMI UEFI, 128 Mbit, Q-Flash & Q-Flash Plus
• OS Support: Windows 10 / 11 (64-bit)
• Form Factor: Micro-ATX (23.3 × 19.8 cm)
