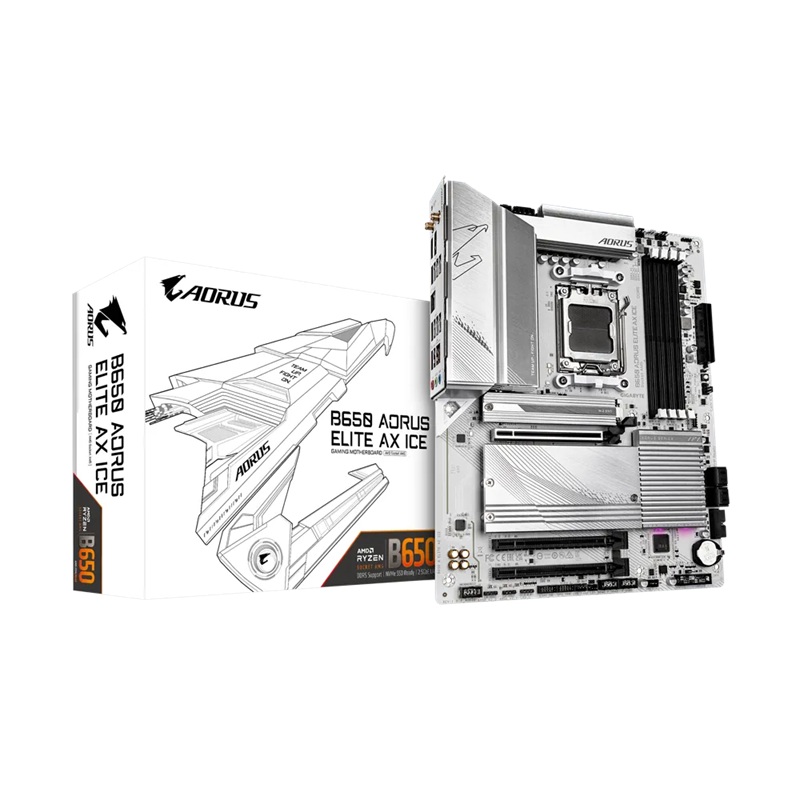

Gigabyte B650 AORUS ELITE AX ICE AMD B650 AM5 ATX Motherboard

Description

Gigabyte B650 AORUS ELITE AX ICE AMD B650 AM5 ATX Motherboard 4x DDR5~192GB, 3x PCIe x16, 3x M.2, 4x SATA 6, 2x USB 3.2, 1x USB-C, 2x USB 2.0

CPU

• AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B650

Memory

• Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 1.4 version and HDR)
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (Support for HDMI 2.1 version, HDCP 2.3, and native HDMI 2.1 TMDS compatible ports)

Storage Interface

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU:

• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

CPU + USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports on the back panel
