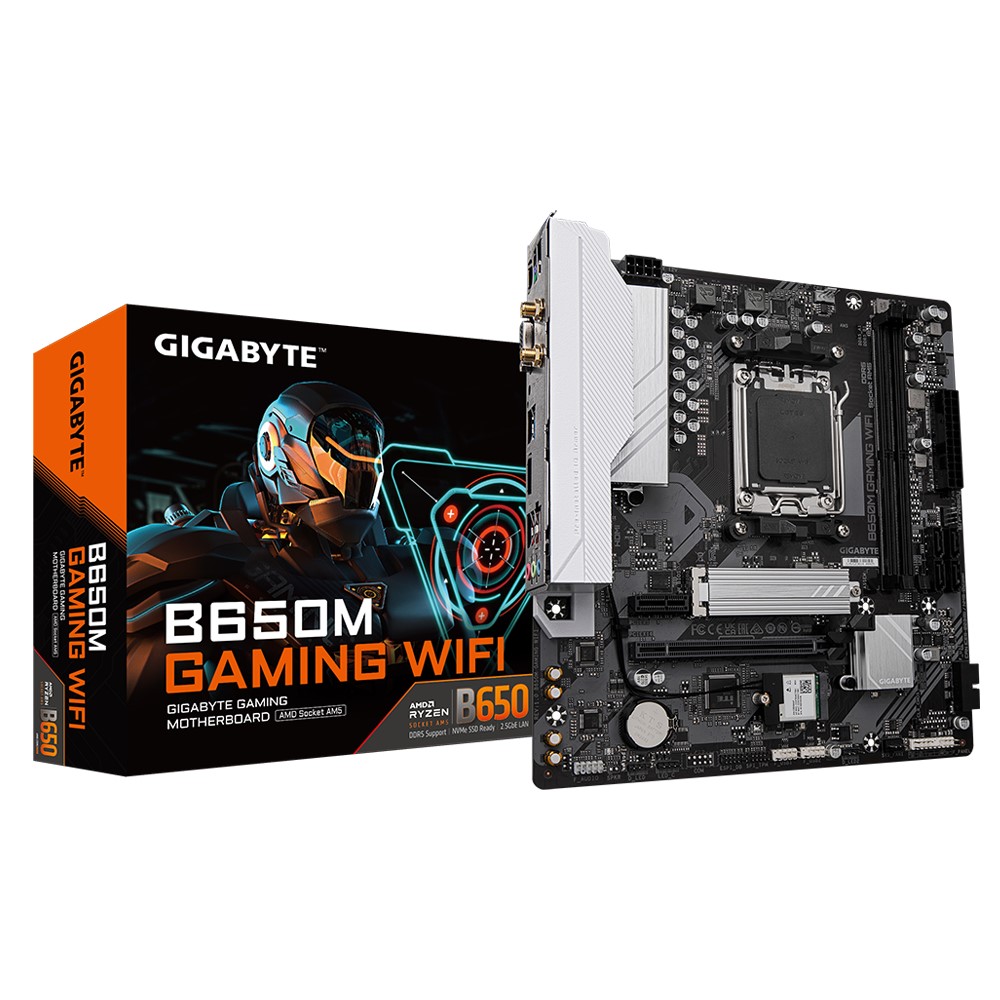

Gigabyte B650M GAMING WIFI Motherboard

Description

Gigabyte B650M GAMING WIFI Motherboard

The Gigabyte B650M GAMING WIFI is designed for the AMD AM5 socket, supporting AMD Ryzen™ 7000 and 8000 Series Processors. Built with the AMD B650 chipset, this micro-ATX motherboard offers reliable performance and essential features for your gaming PC build.

CPU Support

• AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors

Chipset

• AMD B650

Memory

• Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support:
• 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3)

Wireless Communication Module

• AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)
• WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 4.2

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

• 1 x M.2 connector, integrated in the CPU (Socket 3, M key, type 2580 SSD support, PCIe 4.0 x4/x2)
• 4 x SATA 6Gb/s connectors
