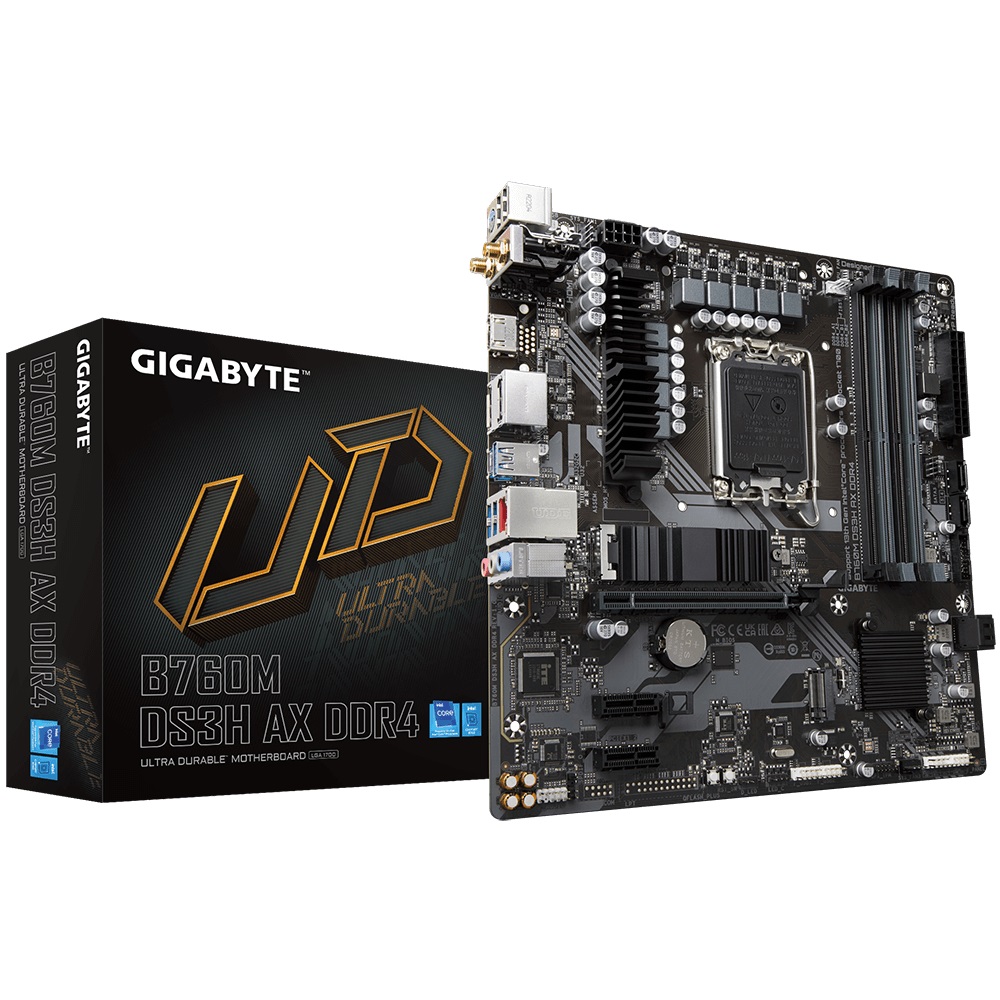

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard

Description

Gigabyte B760M DS3H AX DDR4 Intel LGA 1700 m-ATX Motherboard

The Gigabyte B760M DS3H AX DDR4 is a micro-ATX motherboard designed to support 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket. Featuring the Intel B760 Express Chipset, it delivers robust performance, reliable connectivity, and flexible expansion options for modern system builds.

CPU Support

• LGA1700 socket: Support for 13th and 12th Generation Intel Core, Pentium Gold, and Celeron Processors
• L3 cache varies with CPU

Chipset

• Intel B760 Express Chipset

Memory

• 4 x DDR DIMM sockets supporting up to 128 GB of system memory
• Support for DDR4 up to 5333(O.C.) MT/s memory modules
• Dual channel memory architecture

Onboard Graphics

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.0 and HDCP 2.3)
• 2 x DisplayPorts, supporting a maximum resolution of 4096×2304@60 Hz (DisplayPort 1.2 and HDCP 2.3 support)

Expansion Slots

• 1 x PCI Express x16 slot
• 2 x PCI Express x1 slots

Storage Interface

• 2 x M.2 connectors
• 4 x SATA 6Gb/s connectors

Back Panel Connectors

• 2 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI port
• 2 x DisplayPorts
• 3 x USB 3.2 Gen 1 ports
• 1 x USB Type-C port with USB 3.2 Gen 2 support
• 1 x RJ-45 port
• 3 x audio jacks

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor (24.4cm x 24.4cm)
