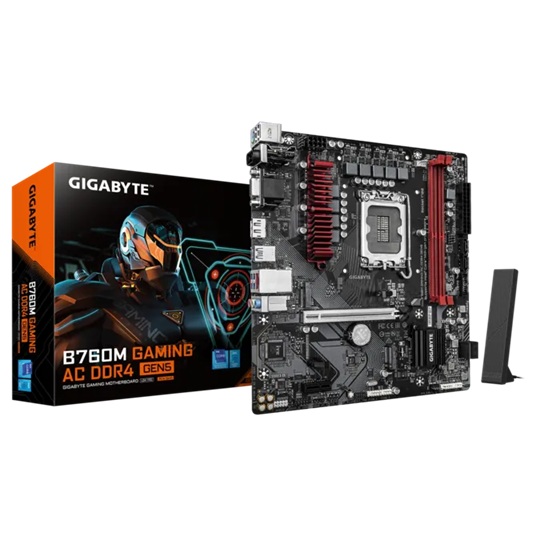

Gigabyte B760M GAMING AC DDR4 GEN5

Description

Gigabyte B760M GAMING AC DDR4 GEN5

The Gigabyte B760M GAMING AC DDR4 GEN5 is a high-performance Micro ATX motherboard designed for 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors. Featuring the Intel B760 chipset, it offers robust power delivery, PCIe 5.0 support, dual-channel DDR4 memory, and comprehensive connectivity including 2.5GbE LAN and Wi-Fi.

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron Processors
• L3 cache varies with CPU

Chipset

• Intel B760 Express Chipset

Memory

• Support for DDR4 memory modules up to 5333(O.C.) MT/s
• 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for ECC and non-ECC Un-buffered DIMM memory modules
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1 and HDCP 2.3)
• 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz (DisplayPort 1.2 and HDCP 2.3)

Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel support
• Support for S/PDIF Out

LAN

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

• CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
• Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

• CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
• Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support), 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor; 24.4cm x 22.5cm
