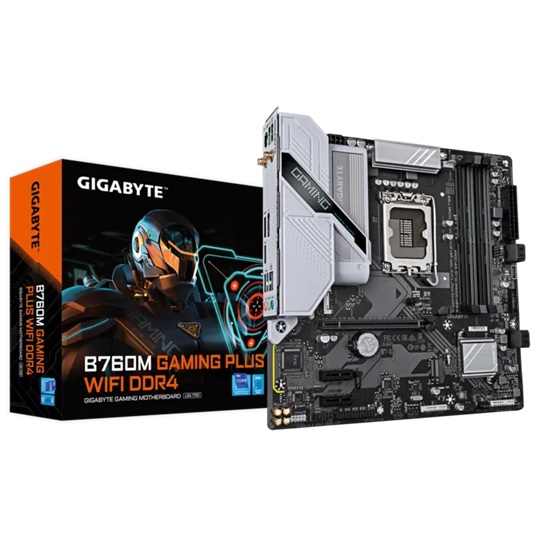

Gigabyte B760M GAMING PLUS WIFI DDR4 Motherboard

Description

Gigabyte B760M GAMING PLUS WIFI DDR4 Motherboard

The Gigabyte B760M GAMING PLUS WIFI DDR4 is a robust Micro-ATX motherboard designed to support 14th, 13th, and 12th Generation Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket. Built on the Intel B760 Express Chipset, it delivers reliable performance and modern connectivity for gaming and productivity builds.

Key Features & Specifications

• Processor Support: LGA1700 socket supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors.
• Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory with dual-channel architecture and XMP support.
• Expansion Slots: 1 x PCI Express x16 slot (PCIe 4.0) and 2 x PCI Express x1 slots (PCIe 3.0).
• Storage Interface: 2 x M.2 connectors (PCIe 4.0 x4/x2) and 4 x SATA 6Gb/s connectors with support for RAID 0, 1, 5, and 10.
• Networking: Realtek GbE LAN chip and Wi-Fi 6 wireless connectivity.
• Audio: Realtek Audio CODEC supporting High Definition Audio up to 7.1-channel with S/PDIF Out support.
• Form Factor: Micro ATX Form Factor (24.4cm x 24.4cm).
