Gigabyte B850 A ELITE WF7 ICE 1.0

Description

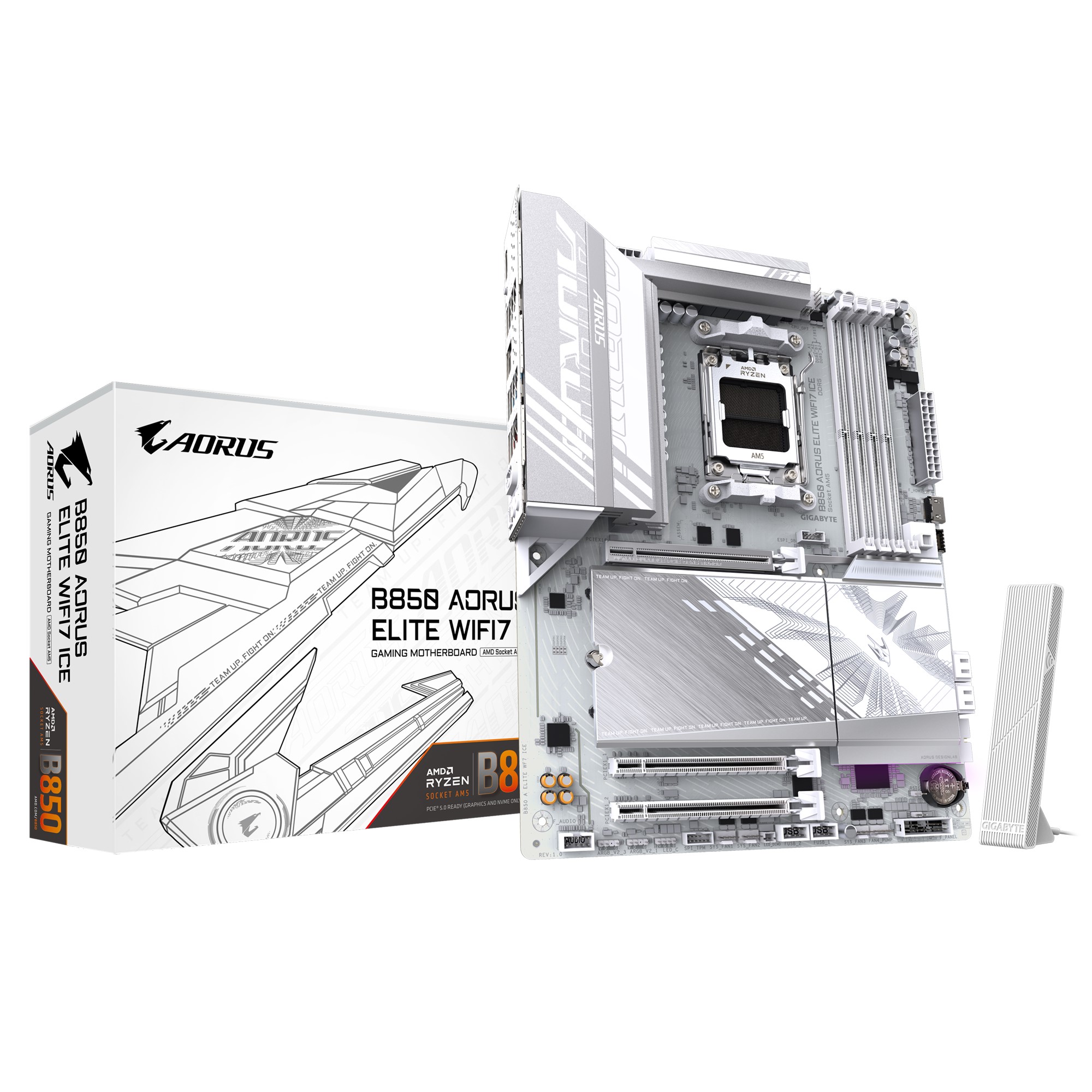

Gigabyte B850 A ELITE WF7 ICE 1.0 Motherboard

The Gigabyte B850 A ELITE WF7 ICE 1.0 is a high-performance motherboard designed for AMD AM5 processors, offering advanced features like PCIe 5.0 support, DDR5 memory compatibility, Wi-Fi 7, and robust connectivity options.

CPU Support

• AMD Socket AM5
• Support for AMD Ryzen™ 9000 Series, 8000 Series, and 7000 Series Processors

Chipset

• AMD B850

Memory

• 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory
• Dual channel memory architecture
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP)

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU supporting up to PCIe 5.0 x16
• 2 x PCI Express x16 slots supporting PCIe 3.0 (running at x1)

Storage Interface

• 3 x M.2 connectors (supporting PCIe 5.0 and PCIe 4.0 SSDs)
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, 1, 5, and 10

Connectivity & Networking

• Realtek® 2.5GbE LAN chip
• Realtek® Wi-Fi 7 RTL8922AE
• Comprehensive USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 port support
