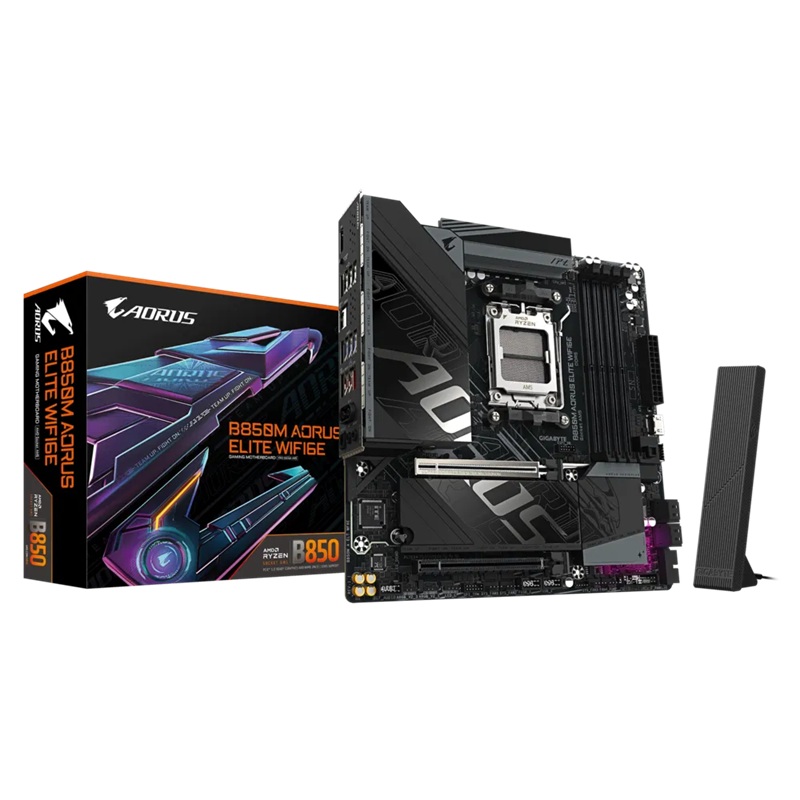

Gigabyte B850M AORUS ELITE WIFI6E Motherboard

Description

Gigabyte B850M AORUS ELITE WIFI6E Motherboard

The Gigabyte B850M AORUS ELITE WIFI6E is a feature-packed Micro-ATX motherboard designed for AMD AM5 socket processors, delivering next-generation performance with support for Ryzen 9000, 8000, and 7000 series processors.

CPU Support

• AMD Socket AM5
• Supports AMD Ryzen™ 9000 Series Processors
• Supports AMD Ryzen™ 8000 Series Processors
• Supports AMD Ryzen™ 7000 Series Processors

Chipset

• AMD B850

Memory

• 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (Support for DisplayPort 1.4 version and HDR)
• 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz (Support for HDMI 1.4 version)

Audio

• Realtek® Audio CODEC / Realtek® ALC1220 CODEC
• High Definition Audio supporting 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN & Wireless

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Realtek® Wi-Fi 6E RTL8852CE (Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5/6 GHz carrier frequency bands)
• Bluetooth 5.3

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
• 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU
• 1 x M.2 connector (M2B_CPU), integrated in the CPU
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices
