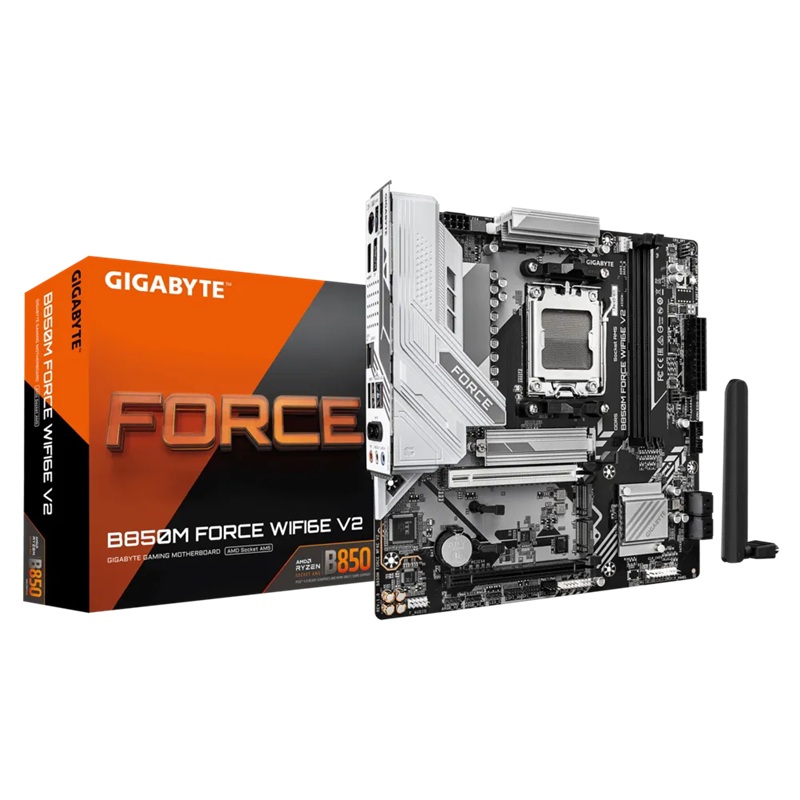

Gigabyte B850M FORCE WIFI6E V2 Motherboard

Description

Gigabyte B850M FORCE WIFI6E V2 Motherboard

Designed for AMD AM5 socket processors, the Gigabyte B850M FORCE WIFI6E V2 delivers robust performance, advanced memory support, and reliable connectivity for modern PC builds.

CPU Support

• AMD Socket AM5
• Supports AMD Ryzen™ 9000 Series Processors
• Supports AMD Ryzen™ 8000 Series Processors
• Supports AMD Ryzen™ 7000 Series Processors

Chipset

AMD B850

Memory

• 2 x DDR5 DIMM sockets supporting up to 128 GB of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support:

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1, HDCP 2.3, and HDR)
• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz (DisplayPort 1.4)

Expansion Slots

• 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU (PCIe 5.0 x16 mode with Ryzen™ 9000/7000; PCIe 4.0 x8 with Ryzen™ 8000-Phoenix 1; PCIe 4.0 x4 with Ryzen™ 8000-Phoenix 2)
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs
• 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices
