Gigabyte B860M AORUS ELITE WIFI6E ICE Motherboard

Description

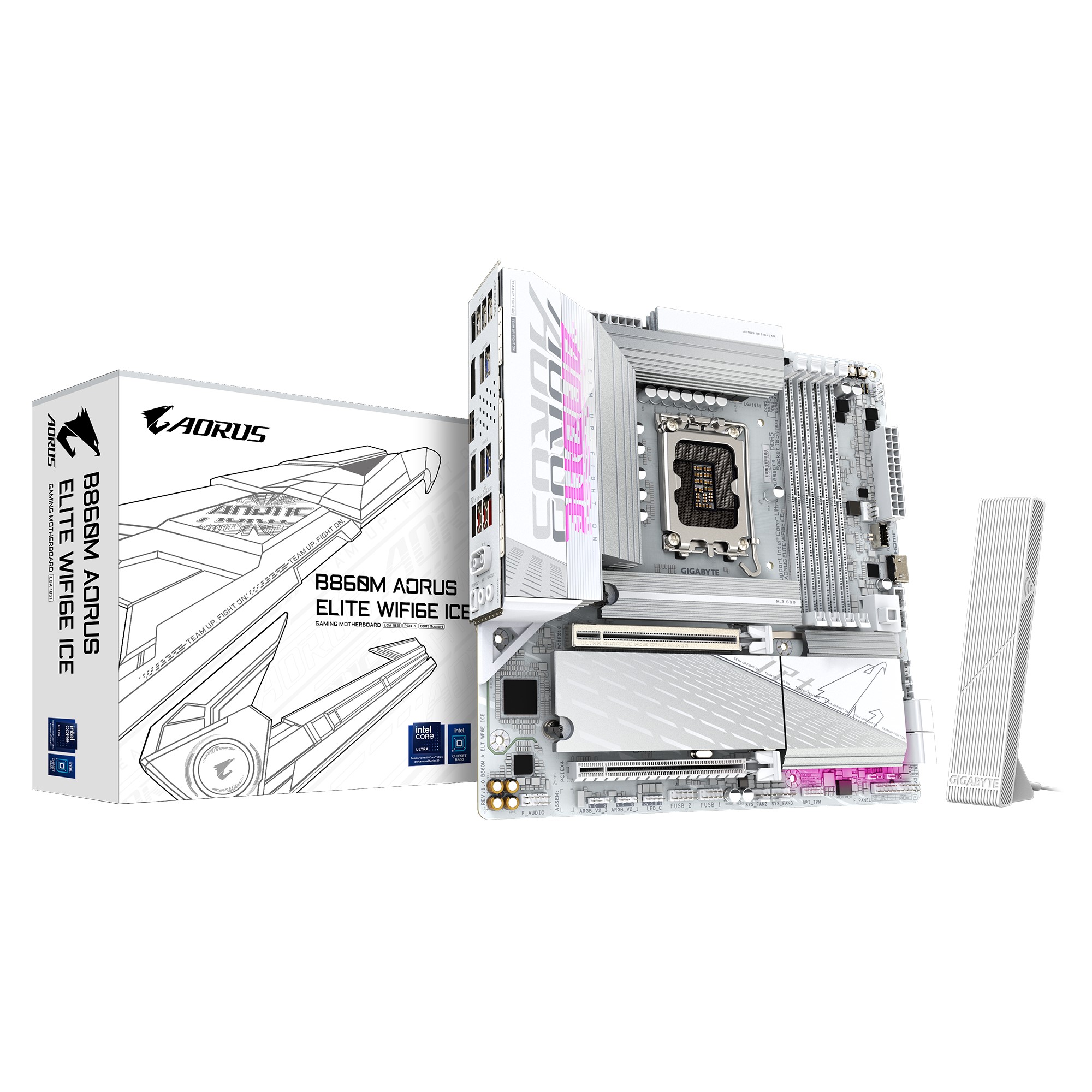

Gigabyte B860M AORUS ELITE WIFI6E ICE 1.0 Motherboard

Designed for Intel Core Ultra Processors, the Gigabyte B860M AORUS ELITE WIFI6E ICE delivers exceptional performance, robust connectivity, and advanced cooling support in a micro-ATX form factor.

CPU & Chipset

• LGA1851 socket supporting Intel Core Ultra Processors
• Intel B860 Express Chipset

Memory

• 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory
• Dual channel memory architecture
• Support for DDR5 memory modules up to 9200(O.C.) MT/s
• Support for Extreme Memory Profile (XMP) memory modules

Expansion Slots

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4

Storage Interface

• 1 x M.2 connector (PCIe 5.0 x4/x2 SSD support)
• 2 x M.2 connectors (PCIe 4.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10

Connectivity

• Realtek 2.5GbE LAN chip
• Intel Wi-Fi 6E AX211 wireless communication module
• USB4 USB Type-C port, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports

Additional information
