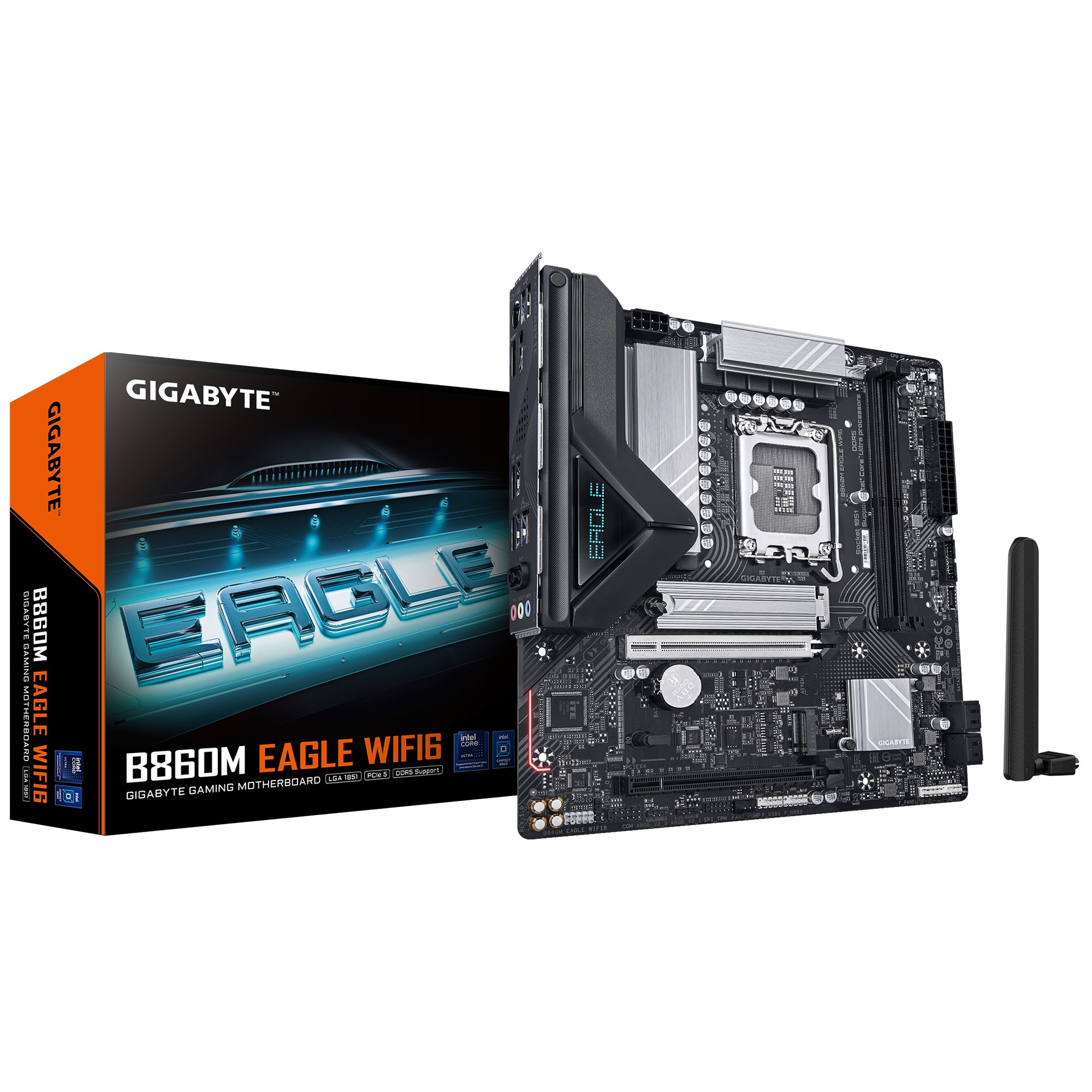

Gigabyte B860M EAGLE WIFI6 1.0 Motherboard

Description

Gigabyte B860M EAGLE WIFI6 1.0 Motherboard

Designed for Intel Core Ultra Processors, the Gigabyte B860M EAGLE WIFI6 1.0 delivers robust performance and reliable connectivity in a micro-ATX form factor.

CPU Support

• LGA1851 socket: Support for Intel ® Core™ Ultra Processors

Chipset

• Intel ® B860 Express Chipset

Memory

• 2 x DDR5 DIMM sockets supporting up to 128 GB of system memory
• Dual channel memory architecture
• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz

LAN & Wireless

• Realtek® 2.5GbE LAN chip
• Realtek® Wi-Fi 6 RTL8851BE

Expansion Slots

• 1 x PCI Express x16 slot, supporting PCIe 5.0
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4

Storage Interface

• 1 x M.2 connector (PCIe 5.0 x4/x2 SSD support)
• 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support)
• 4 x SATA 6Gb/s connectors
