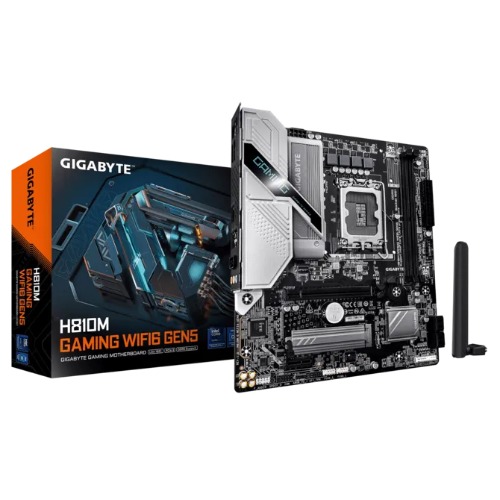

Gigabyte H810M G WIFI6 GEN5 Intel LGA 1851 Micro-ATX Motherboard

Description

Gigabyte H810M G WIFI6 GEN5 Motherboard

The Gigabyte H810M G WIFI6 GEN5 MB is designed for Intel LGA 1851 socket, supporting Intel Core Ultra Processors and powered by the Intel H810 Express Chipset.

CPU Support

• LGA1851 socket: Support for Intel® Core™ Ultra Processors

Chipset

• Intel® H810 Express Chipset

Memory

• Support for DDR5 6400/5600 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB of system memory
• Dual channel memory architecture

Onboard Graphics

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1 and HDCP 2.3 supported)
• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz (DisplayPort 2.1 supported)

Expansion Slots

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Storage Interface

• 1 x M.2 connector
• 4 x SATA 6Gb/s connectors

USB

• 1 x USB Type-C® port with USB 3.2 Gen 1 support
• 3 x USB 3.2 Gen 1 ports
• 9 x USB 2.0/1.1 ports

Form Factor

• Micro ATX Form Factor; 24.4cm x 22.5cm
