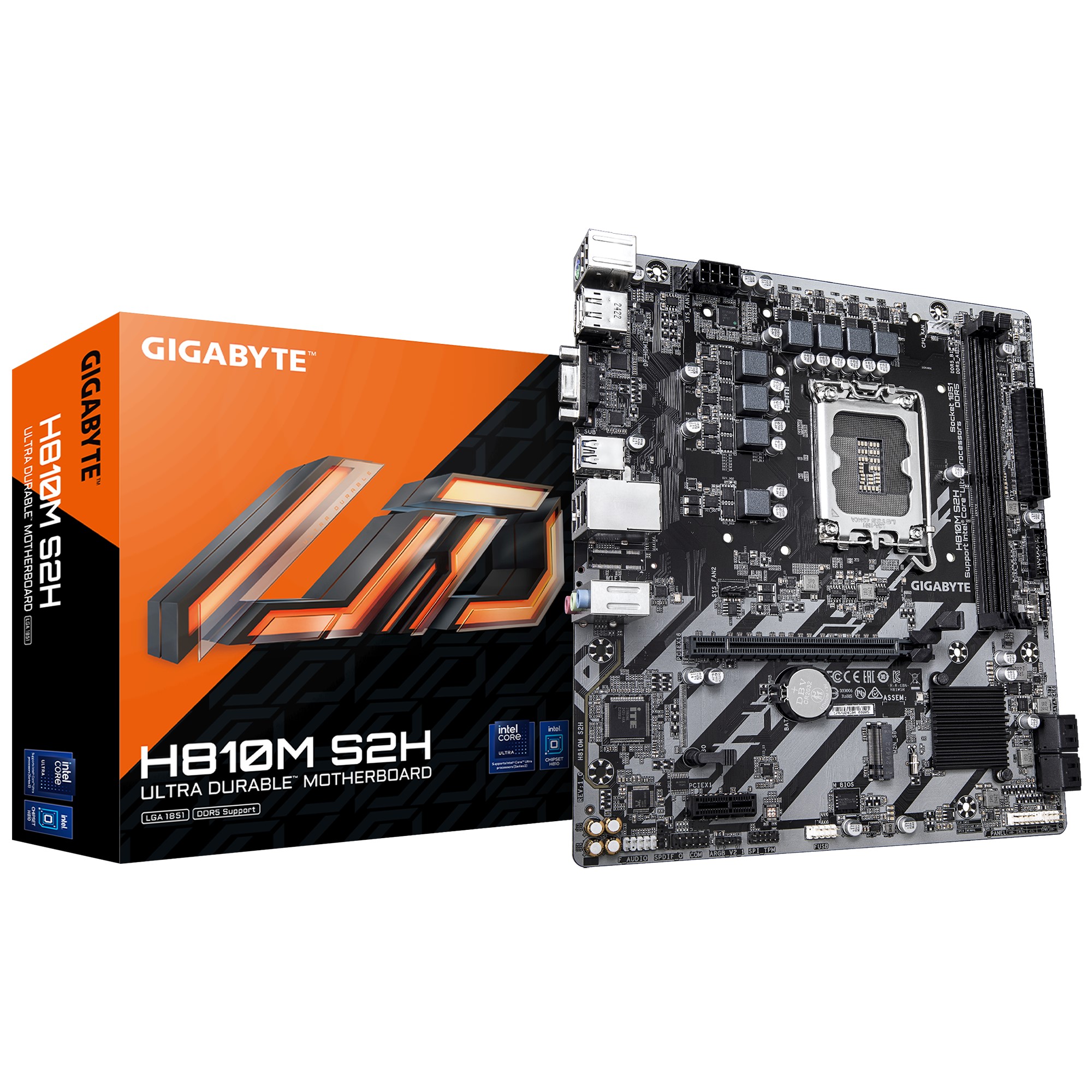

Gigabyte H810M S2H Intel LGA 1851 Micro ATX Motherboard

Description

Gigabyte H810M S2H Intel LGA 1851 Micro ATX Motherboard

The Gigabyte H810M S2H is designed to support Intel Core Ultra Processors on the LGA1851 socket, powered by the Intel H810 Express Chipset. It features robust support for high-speed DDR5 memory, multiple expansion slots, and versatile connectivity options tailored for modern system builds.

CPU Support

• LGA1851 socket: Support for Intel® Core™ Ultra Processors

Chipset

• Intel® H810 Express Chipset

Memory

• Support for DDR5 6400/5600 MT/s memory modules
• 2 x DDR5 DIMM sockets supporting up to 128 GB of system memory
• Dual channel memory architecture

Onboard Graphics

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1 and HDCP 2.3)
• 1 x DisplayPort, supporting a maximum resolution of 3840×2160@60 Hz (DisplayPort 2.1)
• 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz

Expansion Slots

• 1 x PCI Express x16 slot
• 1 x PCI Express x1 slot (supporting PCIe 3.0, running at x1)

Storage Interface

• 1 x M.2 connector
• 4 x SATA 6Gb/s connectors

USB Connectivity

• 1 x USB Type-C® port on the back panel (USB 3.2 Gen 1)
• 5 x USB 3.2 Gen 1 ports (3 on back panel, 2 via internal header)
• 6 x USB 2.0/1.1 ports (2 on back panel, 4 via internal headers)
