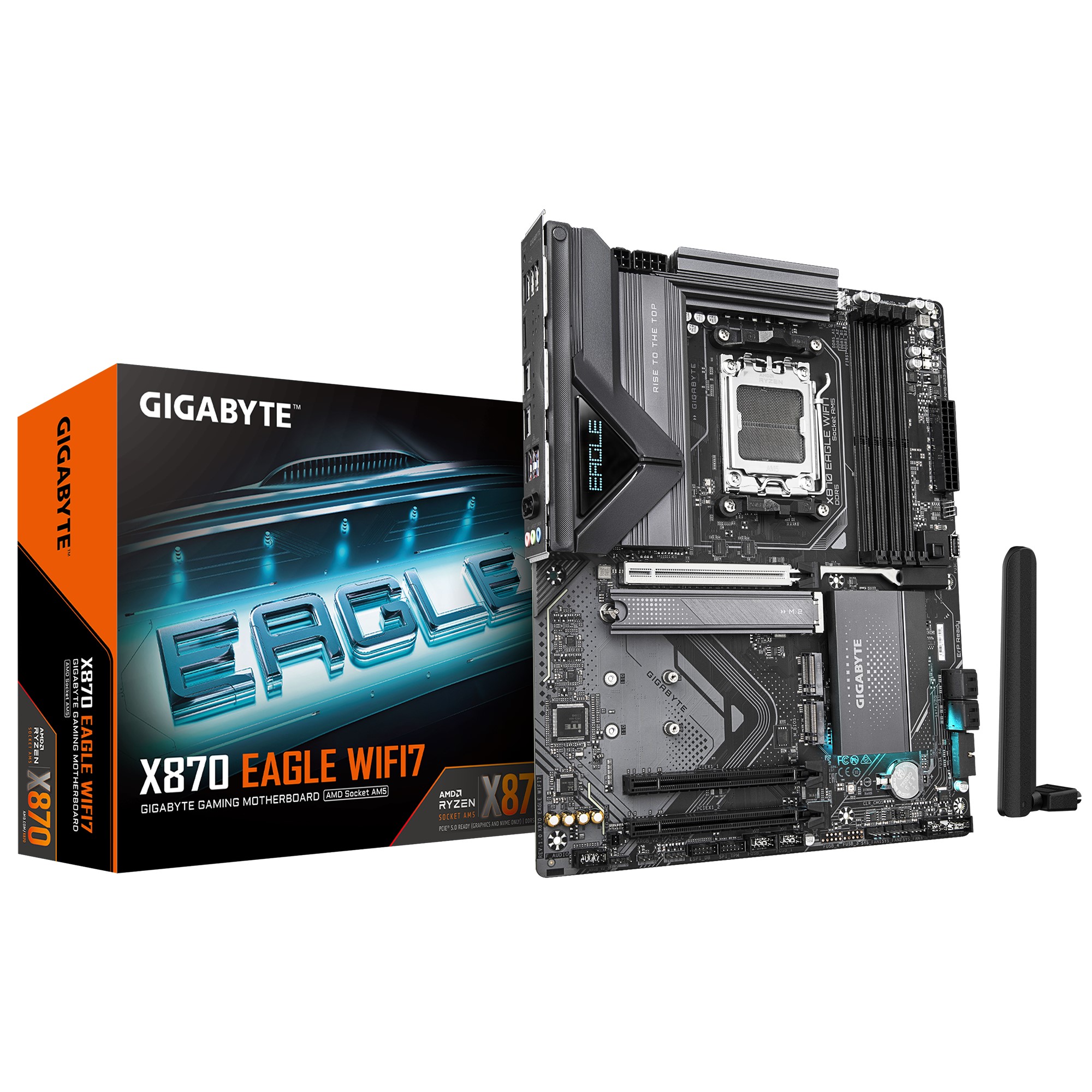

Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard

Description

Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard

Designed for performance and reliability, the Gigabyte X870 EAGLE WIFI7 motherboard supports the latest AMD Ryzen processors on the AM5 platform, delivering advanced connectivity, robust expansion options, and comprehensive storage capabilities.

CPU Support

• AMD Socket AM5 for AMD Ryzen™ 9000, 8000, and 7000 Series Processors

Chipset

• AMD X870

Memory

• 4 x DDR5 DIMM sockets supporting up to 256 GB of system memory (64 GB single DIMM capacity)

Onboard Graphics

• Integrated Graphics Processor with AMD Radeon™ Graphics support
• ASMedia USB4® Controller supporting 2 x USB4® USB Type-C® ports with DisplayPort video outputs (max resolution 3840×2160@240 Hz)
• 1 x HDMI port (max resolution 4096×2160@60 Hz)

Audio

• Realtek® Audio CODEC

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

• 1 x PCI Express x16 slot (integrated in CPU, supports PCIe 5.0 x16, 4.0 x8, or 4.0 x4 depending on processor)
• 2 x PCI Express x16 slots supporting PCIe 3.0 at x1 (Chipset)

Storage Interface

• 1 x M.2 connector (M2A_CPU) supporting PCIe 5.0 or 4.0 SSDs
• 1 x M.2 connector (M2C_SB) supporting PCIe 4.0 x2 SSDs
• 1 x M.2 connector (M2B_SB) supporting PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSDs; RAID 0, RAID 1, and RAID 10 for SATA devices
