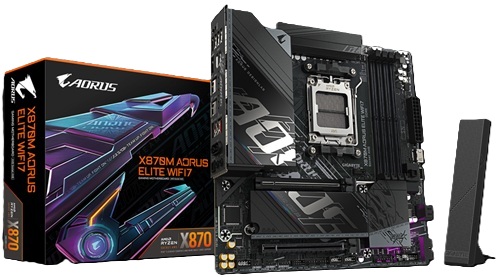

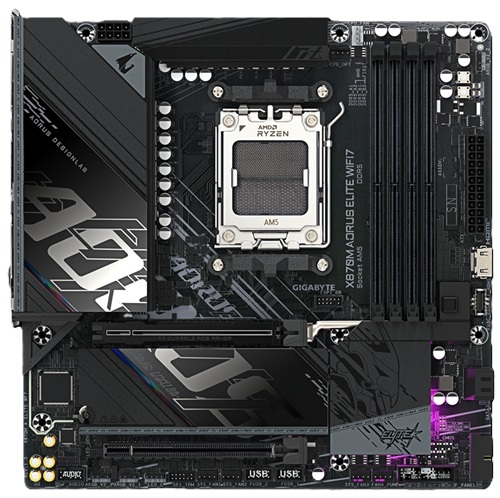

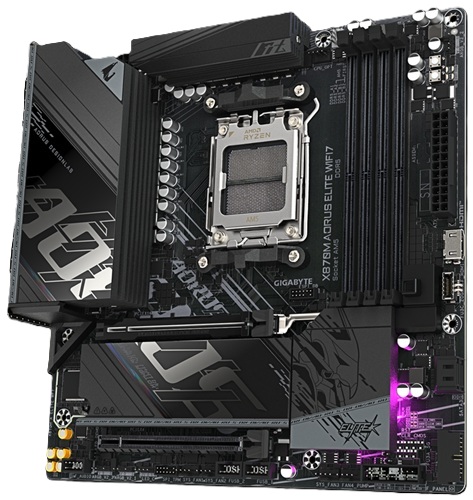

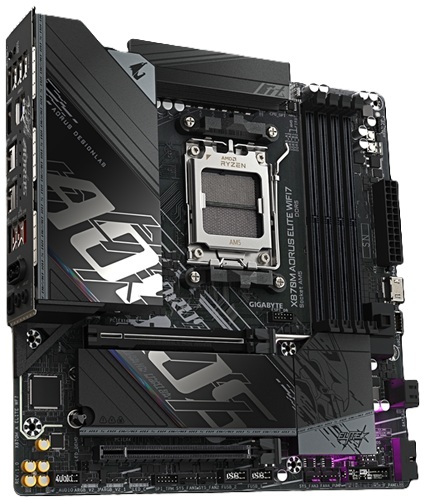

Gigabyte X870M AORUS ELITE WIFI Motherboard

The Gigabyte X870M AORUS ELITE WIFI is a feature-packed Micro ATX motherboard designed for AMD’s AM5 platform, supporting Ryzen 9000, 8000, and 7000 series processors. Built for performance and reliability, it offers cutting-edge connectivity options including Wi-Fi 7, 2.5GbE LAN, and USB4 ports.

CPU Support

• AMD Socket AM5
• Support for AMD Ryzen™ 9000 Series Processors
• Support for AMD Ryzen™ 8000 Series Processors
• Support for AMD Ryzen™ 7000 Series Processors

Chipset

AMD X870

Memory

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory.

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller.

Audio

Realtek® ALC1220 CODEC

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

Realtek® Wi-Fi 7 RTL8922AE

Expansion Slots

• 1 x PCI Express x16 slot
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface

• 1 x M.2 connector (M2A_CPU), integrated in the CPU
• 1 x M.2 connector (M2C_SB), integrated in the Chipset

USB Connectivity

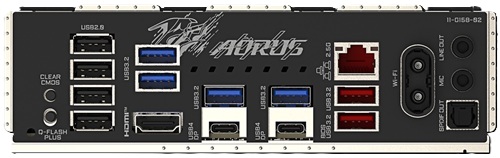

• 2 x USB4® USB Type-C® ports on the back panel
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 2.0/1.1 ports on the back panel
• 4 x USB 3.2 Gen 1 ports on the back panel
• 1 x USB Type-C® port with USB 3.2 Gen 2×2 support via internal header
• 2 x USB 3.2 Gen 1 ports via internal header
• 4 x USB 2.0/1.1 ports via internal headers

BIOS

1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System

Support for Windows 11 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 24.4cm
