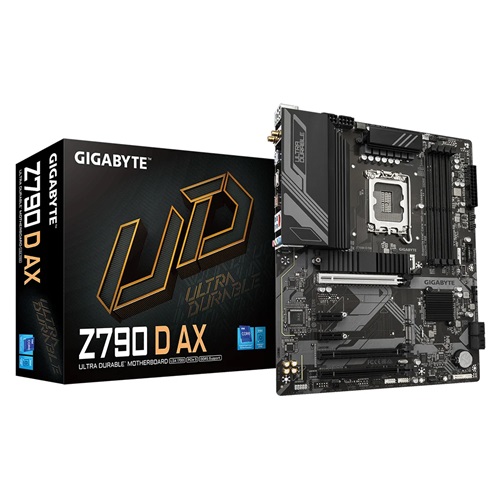

Gigabyte Z790 D AX Intel LGA 1700 ATX Motherboard

Description

Gigabyte Z790 D AX Intel LGA 1700 ATX Motherboard

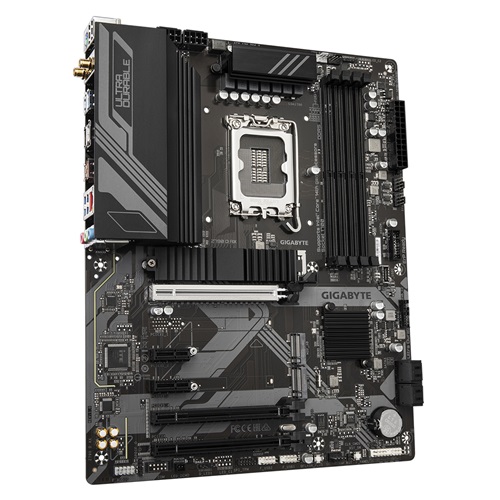

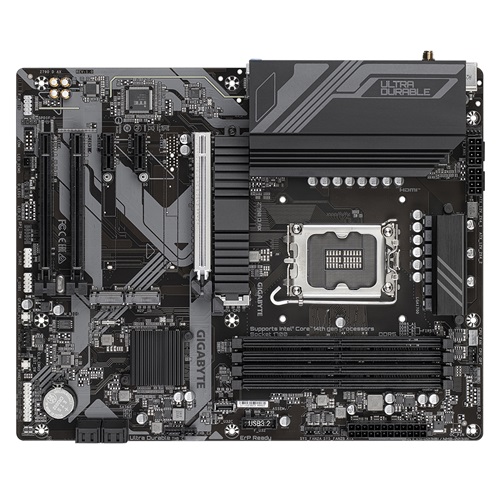

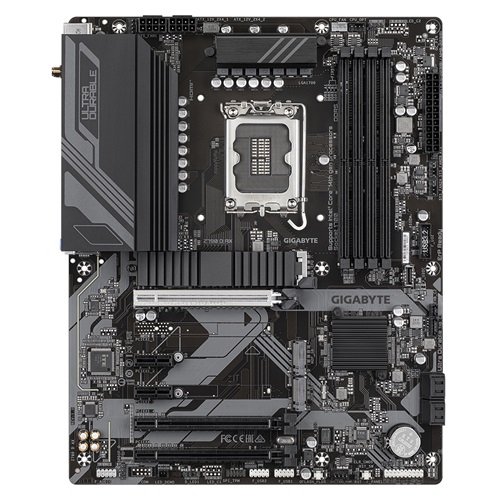

The Gigabyte Z790 D AX motherboard is designed to support the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors on the LGA1700 socket. Powered by the Intel® Z790 Express Chipset, it offers robust performance and expansion options for modern PC builds.

CPU Support

• LGA1700 socket: Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors

Chipset

• Intel® Z790 Express Chipset

Memory

• 4 x DDR5 DIMM sockets supporting up to 192 GB of system memory
• Dual channel memory architecture
• Support for ECC and non-ECC Un-buffered DIMM memory modules
• Support for Extreme Memory Profile (XMP) memory modules

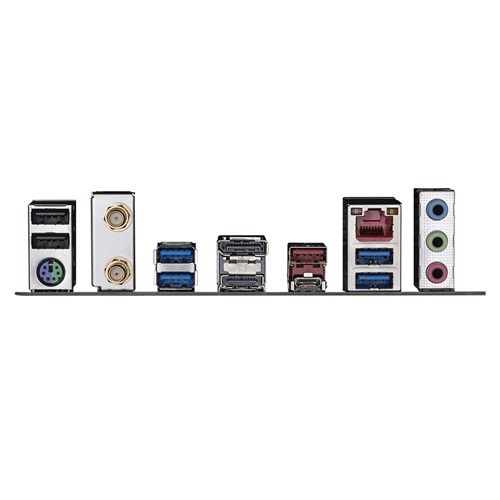

Onboard Graphics

• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
• 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz

Storage Interface

• 1 x M.2 connector (PCIe 4.0 x4/x2 SSD support)
• 2 x M.2 connectors (PCIe 4.0 x4/x2 and SATA support)
• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe and SATA storage devices
