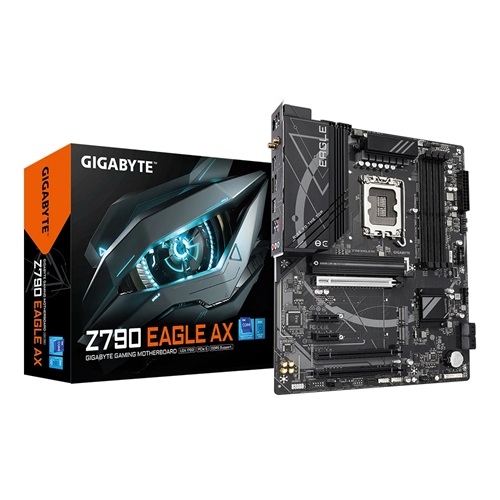

Gigabyte Z790 EAGLE AX Intel LGA 1700 ATX Motherboard

Description

Gigabyte Z790 EAGLE AX Intel LGA 1700 ATX Motherboard

Supports Intel® Core™ 14th/ 13th /12th processors

Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution

Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support

Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors

Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance

EZ-Latch：PCIe 5.0×16 Slot with Quick Release Design

Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax

Extended Connectivity：DP, HDMI, Rear USB-C® 10Gb/s

Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

* 6+6 phases parallel power design

Specifications

• CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors. L3 cache varies with CPU
• Chipset: Intel® Z790 Express Chipset
• Memory: 4 x DDR5 DIMM sockets supporting up to 192 GB of system memory
• Wireless Communication module: Intel® Wi-Fi 6E AX211
• Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red), 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 2 x SMA antenna connectors (1T1R), 1 x HDMI port, 1 x DisplayPort, 1 x RJ-45 port, 3 x audio jacks
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
• Operating System: Windows 11 64-bit / Windows 10 64-bit
