Gigabyte Z890 UD WIFI6E Intel LGA 1851 ATX Motherboard

Description

Gigabyte Z890 UD WIFI6E Intel LGA 1851 ATX Motherboard

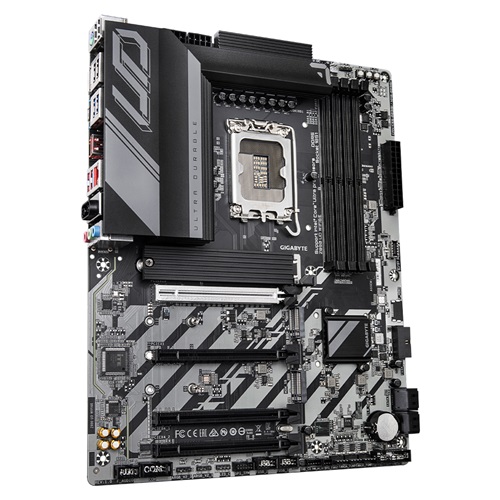

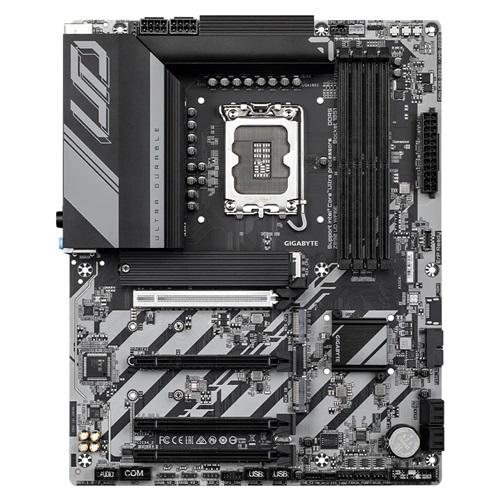

The Gigabyte Z890 UD WIFI6E is a robust ATX motherboard designed for Intel LGA 1851 socket supporting Intel Core Ultra Processors. Featuring advanced connectivity, high-speed memory support, and reliable networking, it is built to handle demanding computing and gaming environments.

CPU Support

• LGA1851 socket: Support for Intel® Core™ Ultra Processors
• L3 cache varies with CPU

Chipset

• Intel® Z890 Express Chipset

Memory

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

• Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 160MHz wireless standard

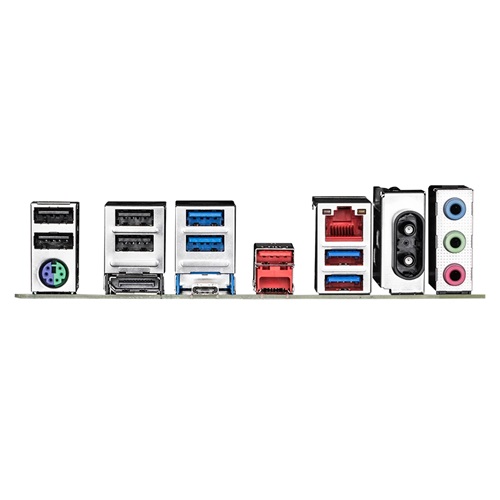

Back Panel Connectors

• 4 x USB 2.0/1.1 ports
• 1 x PS/2 keyboard/mouse port
• 1 x DisplayPort
• 4 x USB 3.2 Gen 1 ports
• 1 x USB4® USB Type-C® port (DisplayPort)
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 1 x RJ-45 port
• 2 x SMA antenna connectors (2T2R)
• 3 x audio jacks

Unique Features

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm
