Kingston 16GB (1x16GB) DDR5 UDIMM 5600MHz CL40 FURY Beast Black XMP Gaming PC Desktop Memory – Ex-demo (box damaged only)

Description

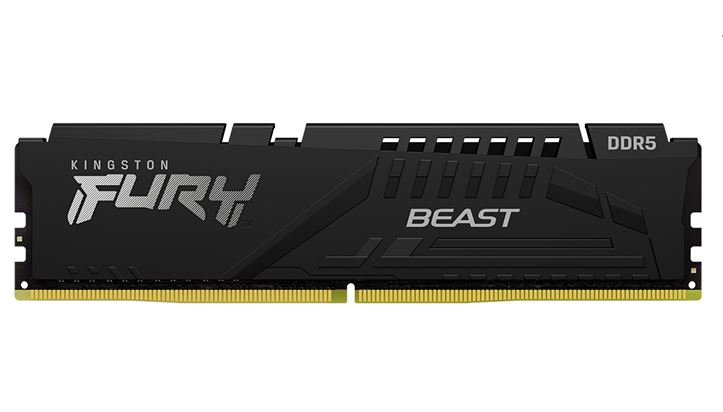

Kingston FURY Beast DDR5 Memory

Kingston FURY KF556C40BB-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Default Features

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37″ (34.9mm), w/heatsink

Default Specifications

• CL(IDD): 40 cycles
• Row Cycle Time (tRCmin): 48ns (min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 295ns (min.)
• Row Active Time (tRASmin): 32ns (min.)
• UL Rating: 94 V – 0
• Operating Temperature: 0 to +85°C
• Storage Temperature: -55°C to +100°C
