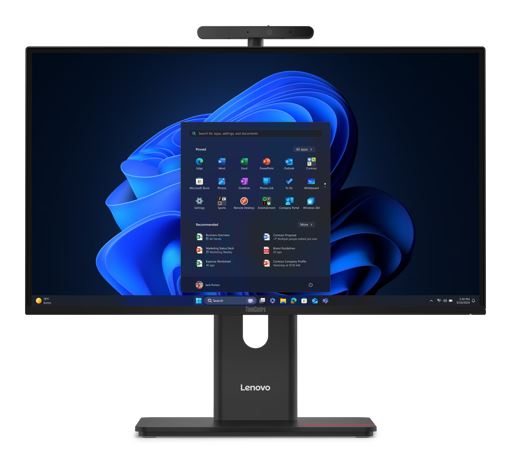

Lenovo ThinkCentre M90a Gen 6 All-in-One PC – 23.8″ FHD Touch, Intel Core Ultra 5 235, 16GB RAM, 512GB SSD, Windows 11 Pro

Description

LENOVO ThinkCentre M90A G6 23.8’/24′ FHD IPS TOUCH Intel U5-235 vPro 16GB DDR5 512GB SSD Windows 11 Pro 3yrs Onsite Wty Keyboard Mouse WiFi+BT

Processor Intel® Core™ Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB
AI PC Category AI PC
NPU Integrated Intel® AI Boost, up to 13 TOPS
Graphics Integrated Intel® Graphics
Chipset Intel® Q870 Chipset
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Storage Support Up to three drives, 3x M.2 SSD • M.2 SSD up to 2TB each (Discrete NPU and 3rd SSD are mutually exclusive)
RAID Preset None
Card Reader 3-in-1 Card Reader
Optical None
Audio Chip High Definition (HD) Audio, Realtek® ALC233NL-VB2-CG codec
Speakers 3Wx2
Camera 5.0MP + IR Hybrid
Microphone 2x, Array
Power Supply 180W 90%
DESIGN
Display 23.8′ FHD (1920×1080) IPS Anti-glare 250nits, 120Hz, 99% sRGB, hardware low blue light, flicker free, eyesafe, touch
Touchscreen 10-point Multi-touch
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse
Optional Bay None
Expansion Slots Four M.2 slots (one for WLAN, three for SSD / discrete NPU)
Case Color Black
Stand Full Function Monitor Stand
Mounting VESA mount
Pen Pen Not Supported
Form Factor AIO (23.8 inches)
Dimensions (WxDxH) 539.6 x 222.21 x 393.01-543.01 mm (21.24 x 8.75 x 15.47-21.38 inches)
Weight 8.96 kg (19.75 lbs, maximum configuration)
CONNECTIVITY
WLAN + Bluetooth Realtek® Wi-Fi® 7 RTL8922AE, 802.11be 2×2 + BT5.4
WWAN Non-WWAN
Ethernet Integrated 100/1000M
Rear Ports 2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On
1x HDMI® (HDMI in 1.4 / HDMI out 2.1 TMDS combo port)
1x DisplayPort™ 1.4a (HBR2)
1x Ethernet (RJ-45)
Right Ports 1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with USB PD 3.0 up to 65W output, DisplayPort™ 2.1, Always On
1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging
1x headphone / microphone combo jack (3.5mm)
Optional Right Ports (configured) 1x card reader
Optional Ports (configured) None
SECURITY & PRIVACY
Security Chip Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader No fingerprint reader
Physical Locks Kensington® Security Slot™, 3 x 7 mm
Chassis Intrusion Switch None
Additional Security None
Other Security ThinkShutter camera cover (camera models)
MANAGEABILITY
System Management Non-vPro®
SERVICE
Base Warranty 3-year, Onsite
Included Upgrade None
CERTIFICATIONS
Green Certifications ENERGY STAR® 9.0
EPEAT™ Gold Registered
ErP Lot 3
GREENGUARD®
RoHS compliant
TCO Certified 10.0
TCO edge
Other Certifications Anti-dust
IP55-compliant (front face, for touch models)
Healthcare compliance: Part of IEC 60601-1 / IEC 60601-1-2
Eyesafe® Certified 2.0
SGS Performance Tested certification : Super Quiet@Hi-Performance Grade 1
TÜV Rheinland® Flicker Free
TÜV Rheinland® Low Blue Light (Hardware Solution)
Mil-Spec Test MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Fungus, Solar Radiation, Contamination by Fluids, Salt Fog)
