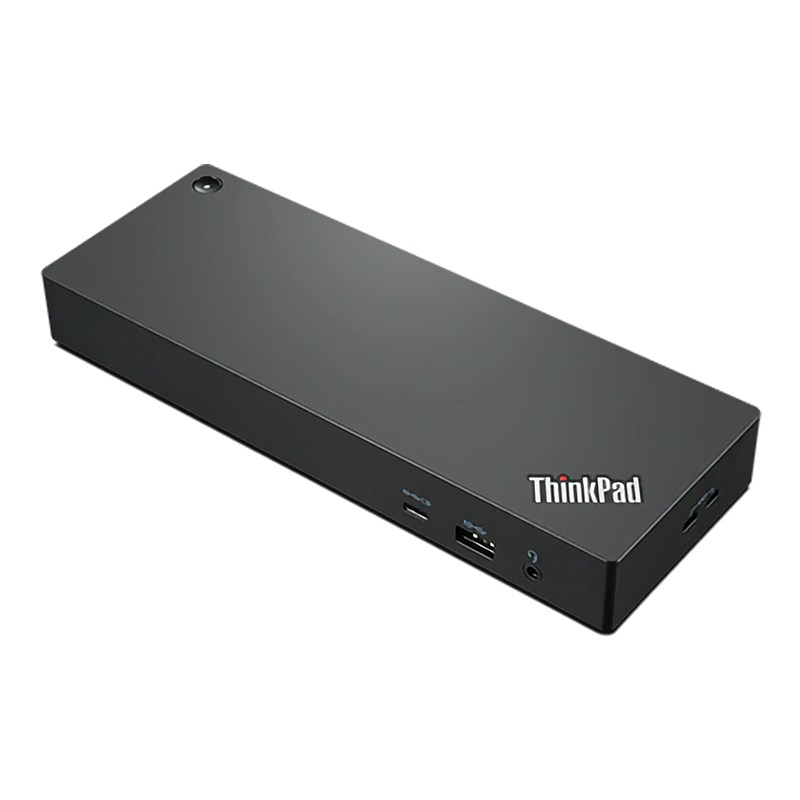

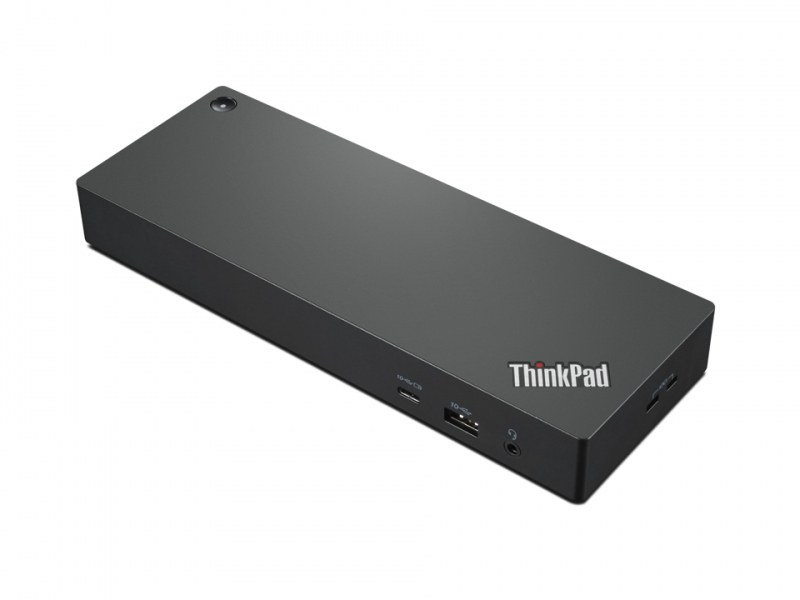

Lenovo ThinkPad Universal Thunderbolt 4 Dock

Description

LENOVO ThinkPad Universal Thunderbolt 4 Dock

Features:
The ThinkPad Universal Thunderbolt™ 4 Dock supports upto 100W PD, Single 8K@30Hz or upto 4 4K@60HZ display support, silent firmware upgrades, vPro/AMT Pass through support, and data transfer rates upto 40 Gbps (depending on host system and peripheral processing capability, file attributes, and other configuration and operating environment factors)

Specification:
Minimum Relative Humidity (%)
5%
Maximum Relative Humidity (%)
95%

Warranty Type
CRU

Warranty Period
3 years

Maximum Operating Temperature
40 celsius

Minimum Operating Temperature
0 celsius

Packed Weight
1.2Kg

Packed Dimensions (L x D x H)
270*195*85mm

Shipment Group

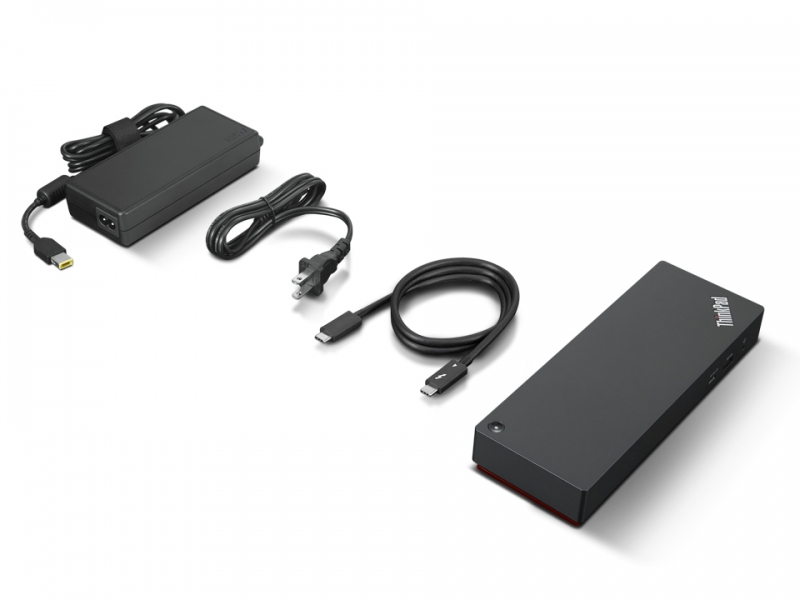

ThinkPad Universal TBT 4 Dock
135W AC Power adapter
Power cord
Setup poster&Warranty Poster Standard TBT 4 Cable

Product Weight
0.45Kg

Height
30mm

Depth
80mm

Length
220mm

Driver Needed
Yes

Hardware Requirements
Host with USB-C/Thunderbolt port

Supported OS
Win10 64 bit

Agency Approvals
RCM,CB

Color
Black/Red

Power Plug
Slim Tip

Power Button
Yes

Output Power
Max 100W

Power Delivery
Yes

Input Power
20V 6.75A

Charging Port
DC-IN

Maximum Resolution/Refresh Rate
1* 8K 30Hz Via HDMI 2.1 4*4K 60 Hz

Max Number of External Monitors
4

Physical Security Feature
1* NanoSaver lock slot 1*MicroSaver lock slot

Ethernet
1* Gigabit Ethernet

Audio Ports
1* 3.5mm Audio combo Jack

USB Ports
4* USB-A 1* USB-C

Video Ports
1* HDMI 2.1 2* DP 1.4

Thunderbolt Port
1* Thunderbolt Port – for Host connect 1* Thunderbolt Port – for Device connect
