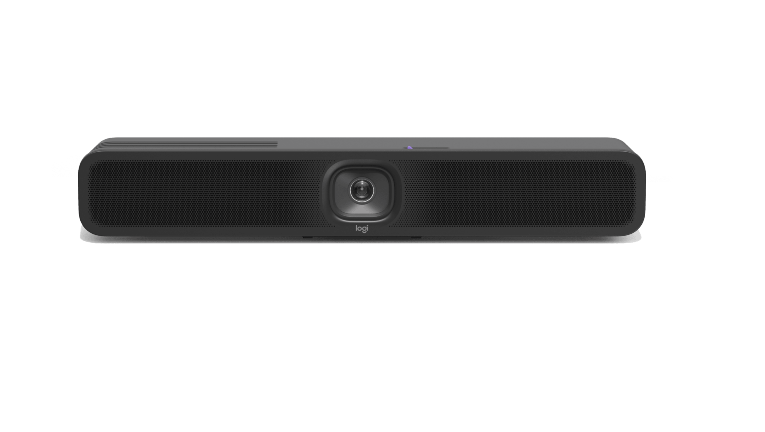

Logitech MeetUp 2 – All-In-One Conference Camera

Description

Logitech MeetUp 2 – All-In-One Conference camera

Upgrade your small meeting rooms with MeetUp 2, a USB conference camera for small spaces powered by AI features that simplify the meeting experience for both employees and IT.

Specs & Details
Dimensions
Height: 73.3 mm
Width: 469.2 mm
Depth: 73 mm
Weight: 1.8 kg
Technical Specifications
Overview
Built-in Components
6 DMIC microphone array
Digital PTZ camera
1 full range ported speaker
Cable management & retention system
Multi-mount
Logitech CollabOS platform
Logitech RightSight 2
Logitech RightSound 2
General Specifications
Enclosure: All-in-one enclosure
Device Management: Logitech Sync
Displays Supported: BYOD mode: 1; Dedicated computer mode: computer/application dependent
Display Resolution: 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Digital pan: ±48° at 4x zoom
Digital Tilt: ±32° at 4x zoom
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80°
Resolution: 4K
Speakers
Driver: 55 mm with bass reflex enclosure and patented suspension design
Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
Rated Power: 8W THD at 1W, 1kHz : <2%
Speaker Sampling Rate: 48KHz
Impedance: 4 Ohms
Microphones
Frequency Response: 90Hz – 16kHz
Sensitivity: -36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: Up to 7m
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm
Interfaces
HDMI Out: 1
HDMI In: 1
USB: 1 x Type C USB 3.1
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
Bluetooth: Bluetooth® Low Energy
Power and Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 2.1A
Power Supply Dimensions: 114 x 47 mm x 32.3 mm
DC Cable: 3 m
USB C to USB C 3.0 Cable: 3 m
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -25-70°C
Humidity: 10 to 90%
Security
File Based Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Physical Security: Kensington security slot
Warranty Information
2-Year Limited Hardware Warranty
1-Year and 3-Year Extended Warranty available for purchase

Windows 10 and higher
macOS: two most recent versions
Network Connection: wired or wireless
