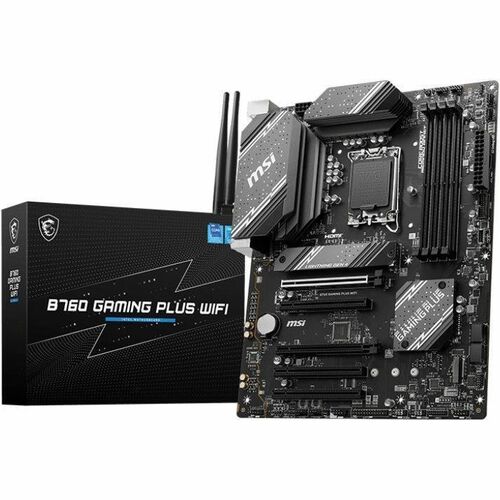

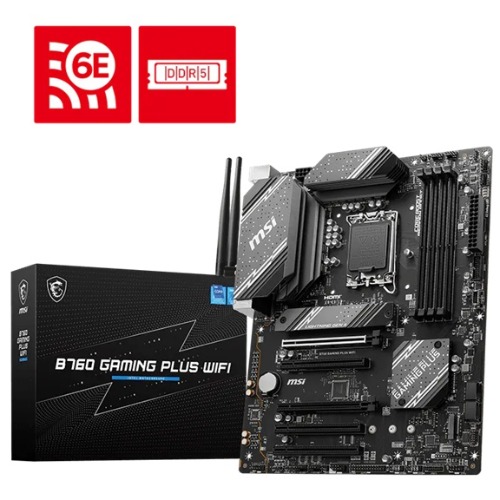

MSI B760 GAMING PLUS WIFI ATX Motherboard

Description

MSI B760 GAMING PLUS WIFI ATX Motherboard

The MSI B760 GAMING PLUS WIFI ATX Motherboard is designed to support 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for the LGA 1700 socket. Featuring advanced power design and premium thermal solutions, it provides a stable and high-performance foundation for gaming and multimedia setups.

Features

• Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
• Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads built for high performance systems
• Lightning Fast Game Experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, Turbo USB 3.2 Gen 2 10G
• 2.5G LAN with Wi-Fi 6E Solution for secure, stable, and fast network connections
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Studio grade sound quality for an immersive gaming experience

Specifications

• Chipset: Intel B760
• CPU Support: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
• Socket: LGA 1700
• Memory: 4x DDR5, Maximum Memory Capacity 192GB
• Onboard Graphics: 1x HDMI™, 1x DisplayPort
• Expansion Slots: 5x PCI-E x16 slot
• Storage: 2x M.2, 4x SATA 6G
• USB Ports: 4x USB 2.0 (Rear), 2x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Rear)
• Form Factor: ATX (243.84mm x 304.8mm)
