MSI B850 GAMING PLUS WIFI PZ Motherboard

Description

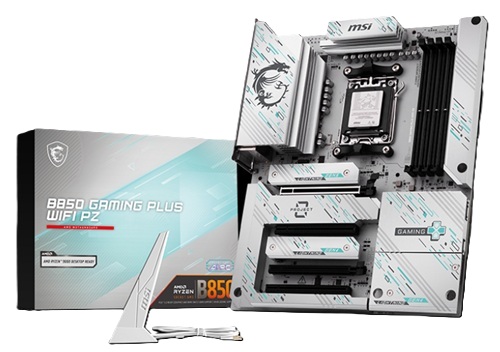

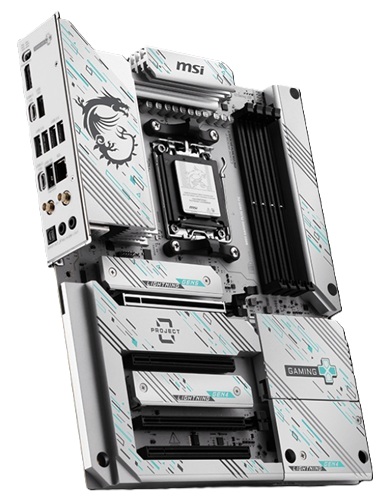

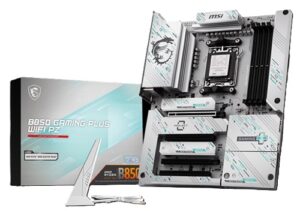

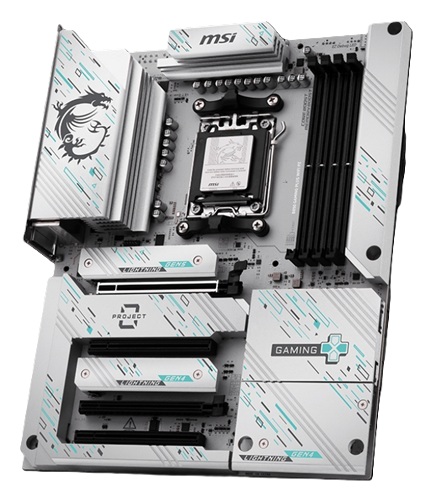

MSI B850 GAMING PLUS WIFI PZ Motherboard

The MSI B850 GAMING PLUS WIFI PZ is designed to support AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors on the Socket AM5 platform. Offering robust performance with DDR5 memory support up to 256GB and advanced connectivity options including Wi-Fi 7 and Bluetooth 5.4, this motherboard is ideal for high-performance gaming and content creation rigs.

Specifications

• Chipset: AMD B850
• CPU Support: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5)
• Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB, supports Memory Overclocking and AMD EXPO™
• Expansion Slots: 4x PCI-E x16 slot (PCI_E1 Gen PCIe 5.0, PCI_E2 Gen PCIe 3.0, PCI_E3 Gen PCIe 4.0, PCI_E4 Gen PCIe 3.0)
• Audio: Realtek® ALC897 7.1-Channel High Definition Audio
• Storage: 3x M.2 slots (M.2_1 up to PCIe 5.0 x4, M.2_2 up to PCIe 4.0 x4, M.2_3 up to PCIe 4.0 x2), 4x SATA 6G ports
• RAID Support: Supports RAID 0, 1, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe storage devices
• LAN: Realtek® 8126VB 5G LAN
• Wireless & Bluetooth: Wi-Fi 7 Solution supporting MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps, 802.11 a/b/g/n/ac/ax/be, and Bluetooth® 5.4
