MSI B850 GAMING PLUS WIFI

Description

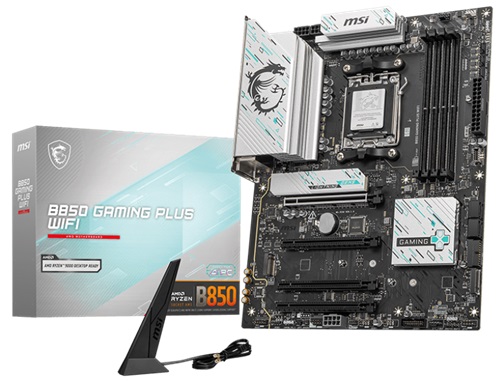

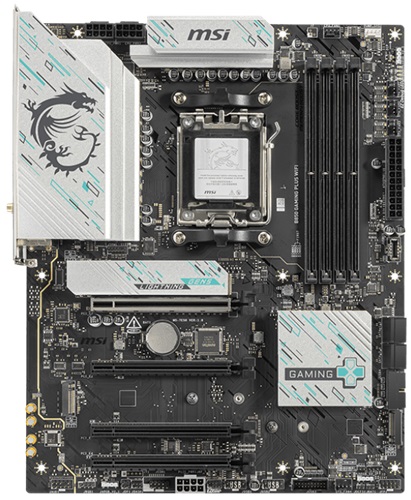

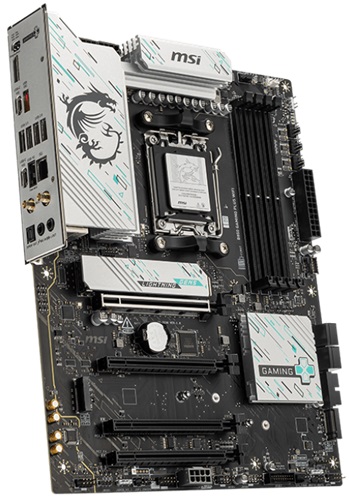

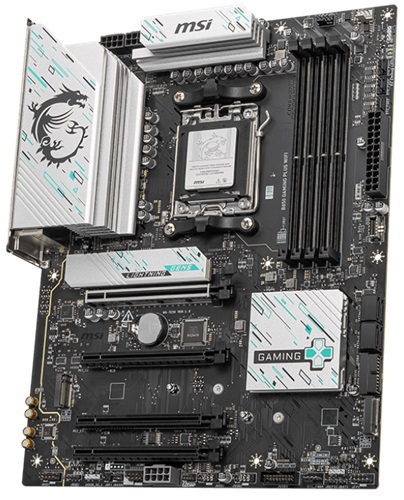

MSI B850 GAMING PLUS WIFI Motherboard

Designed for gamers and power users, the MSI B850 GAMING PLUS WIFI motherboard delivers high-end performance, robust connectivity, and advanced cooling support for the AMD Ryzen platform.

Specification

• Model Name: B850 GAMING PLUS WIFI
• CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• CPU Socket: AMD Socket AM5
• Chipset: AMD B850 Chipset

Expansion Slot

• 1 x PCIe 5.0 x16 slot
• 1 x PCIe 4.0 x16 slot
• 2 x PCIe 3.0 x1 slots

Display Interface

Support 4K@60Hz as specified in DisplayPort 1.2 HBR – Requires Processor Graphics

Memory Support

4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)

Storage

• 1 x M.2 Gen5 x4 128Gbps slot
• 1 x M.2 Gen4 x4 64Gbps slot
• 1 x M.2 Gen4 x2 32Gbps slot
• 4 x SATA 6Gbps ports

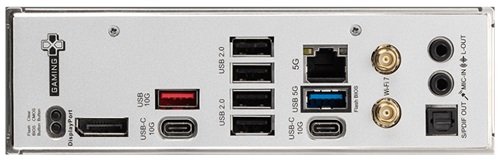

USB Ports

• 3 x USB 10Gbps (1 Type-A + 2 Type-C)
• 6 x USB 5Gbps (5 Type-A + 1 Type-C)
• 8 x USB 2.0

Networking & Audio

• LAN: Realtek® 5Gbps LAN
• WIFI / BT: Wi-Fi 7 Solution, Bluetooth 5.4
• Audio: 8-Channel (7.1) HD Audio with Audio Boost
