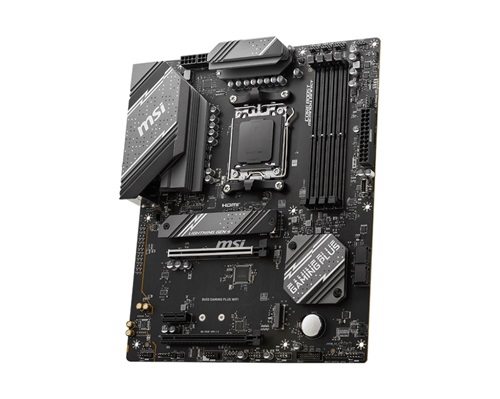

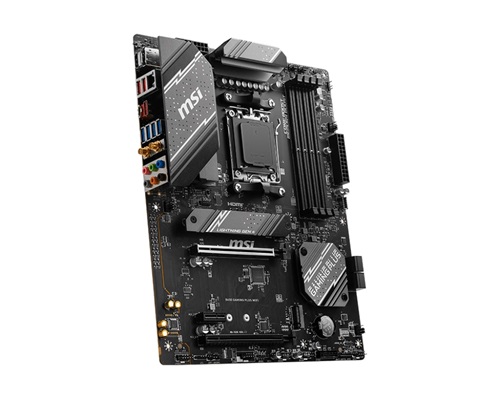

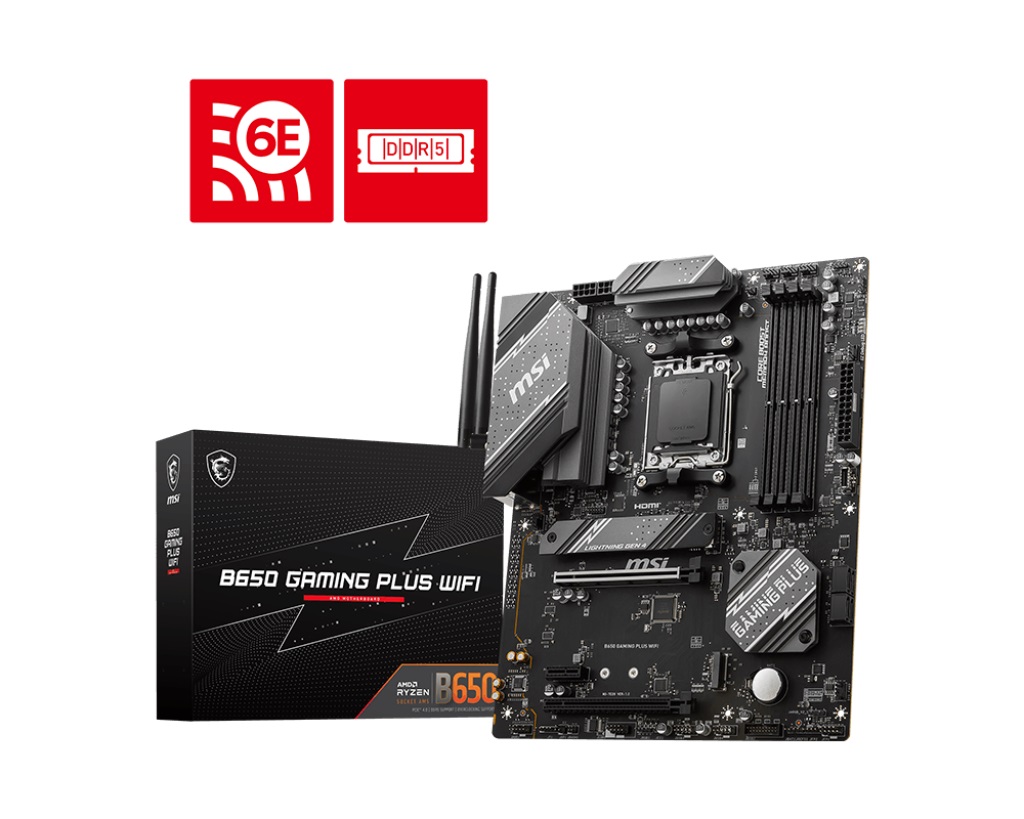

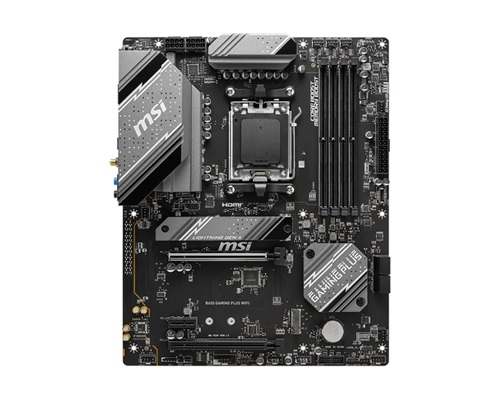

MSI MPG B650 GAMING PLUS WIFI AMD AM5 ATX Motherboard

Description

MSI MPG B650 GAMING PLUS WIFI AMD AM5 ATX Motherboard

The MSI MPG B650 GAMING PLUS WIFI is engineered with the AMD B650 chipset, supporting AMD Ryzen™ 7000 Series Desktop Processors on the AM5 socket. Designed for high performance and non-stop gaming work, it features advanced power delivery, comprehensive cooling solutions, and lightning-fast connectivity.

Features

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
• Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr
• Lightning Fast Game Experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2×2 20G
• 2.5G LAN with Wi-Fi 6E Solution for a secure, stable, and fast network connection
• High Quality PCB: 6-layer PCB made by 2oz thickened copper

Specifications

• Chipset: AMD B650
• CPU Support: Supports AMD Ryzen™ 7000 Series Desktop Processors (Socket AM5)
• Memory: 4x DDR5, Maximum Memory Capacity 192GB
• Onboard Graphics: 1x HDMI, 1x DisplayPort
• Expansion Slots: 2x PCI-E x16 slots, 1x PCI-E x1 slot
• Storage: 2x M.2 slots, 4x SATA 6G ports
• Form Factor: ATX (243.84mm x 304.8mm)
