MSI Z890 GAMING PLUS WIFI Motherboard

Description

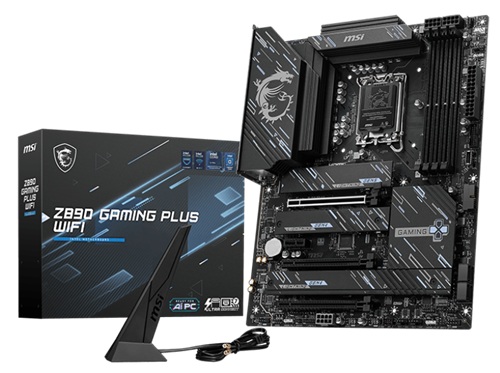

MSI Z890 GAMING PLUS WIFI Motherboard

The MSI Z890 GAMING PLUS WIFI Motherboard is designed for high-performance computing, featuring the Intel Z890 chipset and support for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. Built for enthusiasts and gamers alike, it offers robust expansion options, lightning-fast memory support up to 256GB DDR5, advanced cooling compatibility, and next-gen connectivity including Intel Killer 5Gbps LAN and Wi-Fi.

Processor Support

• Supports Intel Core Ultra Processors (Series 2)
• Socket: LGA 1851
• Chipset: Intel Z890

Memory (RAM)

• 4x DDR5 UDIMM slots
• Maximum Memory Capacity: 256GB
• Supports Memory Overclocking and Intel XMP 3.0
• Supports Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered memory, and CUDIMM

Expansion Slots

• 3x PCI-E x16 slots (PCI_E1 Gen PCIe 5.0 up to x16; PCI_E2 and PCI_E3/E4 Gen PCIe 4.0)
• 1x PCI-E x1 slot

Storage

• 4x M.2 slots (M.2_1 up to PCIe 5.0 x4; M.2_2, M.2_3, M.2_4 up to PCIe 4.0 x4)
• 4x SATA 6G ports

Onboard Graphics

• 1x HDMI (Supports HDMI 2.1, max resolution 4K 60Hz)
• 1x DisplayPort (Supports DisplayPort 1.4, max resolution 4K 60Hz)
• 1x Type-C DisplayPort (Thunderbolt 4 port supporting DisplayPort 2.1 over USB Type-C up to 8K@60Hz)

Networking

• Intel Killer E5000 5Gbps LAN
• Wi-Fi support included
