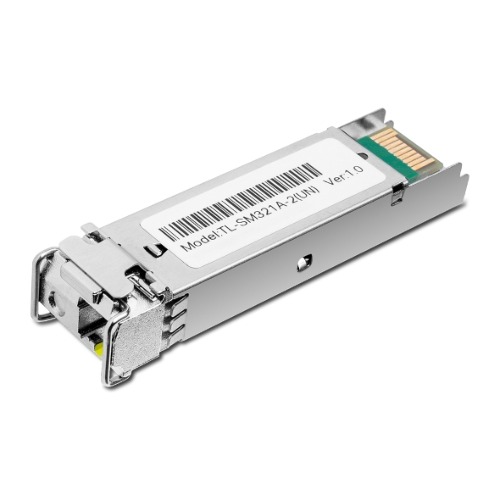

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)

Original price was: $39.00.Current price is: $30.65. inc GST

TP-Link 1000Base-BX WDM Bi-Directional SFP Module, TX: 1550nm, RX: 1310nm, up to 2 km transmission distance over Single-Mode Fiber.

2 in stock

2 in stock

Warehouse availabilityLIVE
QLD—
NSW—
VIC—
WA—
SA—
TAS—
ACT—
NT—

Call for corporate/edu qty purchases

GTIN: 1210002612067MPN: TL-SM321A-2 SKU: SM321A-2 Categories: , Tags: , , , , , , , Brand:

Description

TP-Link 1000Base-BX WDM Bi-Directional SFP Module (TL-SM321A-2)

  • Adopts the latest standard 1000Base-BX
  • Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Supports Digital Diagnostic Monitoring (DDM)
  • Supports Hot Swappable

HARDWARE FEATURES

DDM Yes
SFP-MSA Yes
Hot Swappable Yes

MEDIA CONVERTER & MODULE

Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length TX: 1550 nm
RX: 1310 nm
Power Supply 3.3 V
Safety & Emission FCC, CE
Cabel Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 2 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing

Additional information

Weight 0.06 kg
Dimensions 12.4 × 8.2 × 3.8 cm
