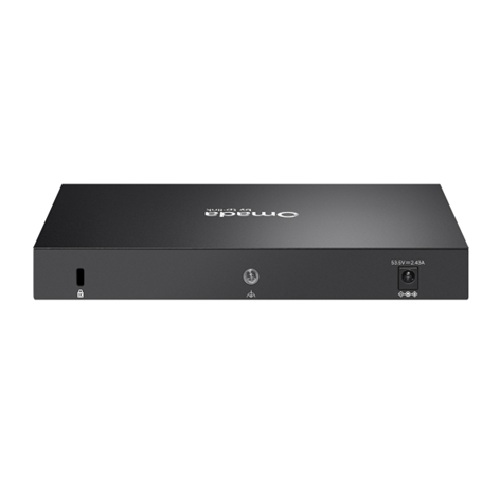

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch

$279.00

TP-Link ES206XPP-M2 Omada 5-Port 2.5G + 1-Port 10G PoE++ Easy Managed Switch featuring 5x 2.5G RJ45 ports, 4x PoE++ ports, and 1x 10G SFP+ slot.

8 in stock

Description

Interface	• 5× 2.5 Gbps RJ45 Ports (4× 802.3af/at/bt-compliant PoE++) • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	• Fanless
Installation	• Desktop • Wall Mount
Physical Security Lock	• √
Power Supply	• DC Power Adapter (Output: 53.5 VDC / 2.43 A)
PoE Ports (RJ45)	• Standard: 802.3af/at/bt PoE++ compliant • PoE Ports: 4 Ports • PoE Budget: 120W available for all PoE++ ports, 90W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡
Dimensions ( W x D x H )	• 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection	• ±6 kV

Quality of Service	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode – WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control – Port-Based Rating Limit • Storm Control – Multiple Control Modes (kbps/pps) – Broadcast/Multicast/Unknown-Unicast Control△
L2 Features	• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control – 802.3x Flow Control • Mirroring – Port Mirroring – One-to-One – Many-to-One – Ingress/Egress/Both • Port Statistics – Port Mirror Status – Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping – IGMP v1/v2/v3 Snooping – Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN – Max 32 VLAN Groups – 4K VID
Transmission Method	• Store-And-Forward

Warranty Period: 5-Year

Print Technology	2.5 gbase-t, 10gbase-t
Ports	5 × 2.5 gbps rj45 ports, 1× 10 gbps sfp+ slot
Power Supply	external power adapter (output: 53.5 vdc / 2.43 a)
Cable Management	omada sdn
Standards And Protocols	ieee 802.3, ieee 802.3u, ieee 802.3ab, ieee 802.3bz, ieee 802.3ae, ieee 802.3af, ieee 802.3at, ieee 802.3bt, ieee 802.3x
Brand	TP-LINK
Gtin	1210002600965
