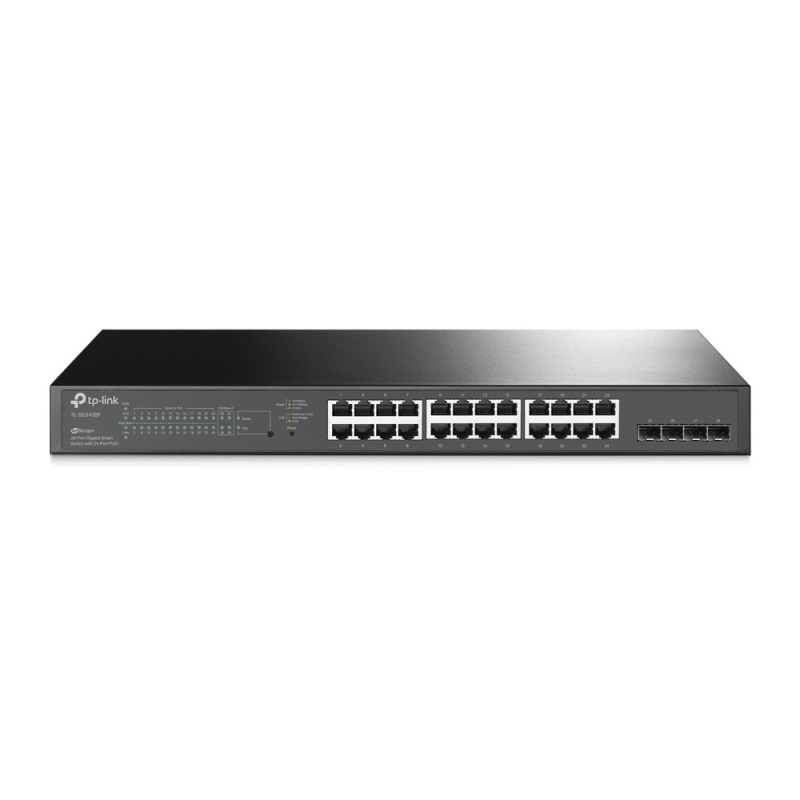

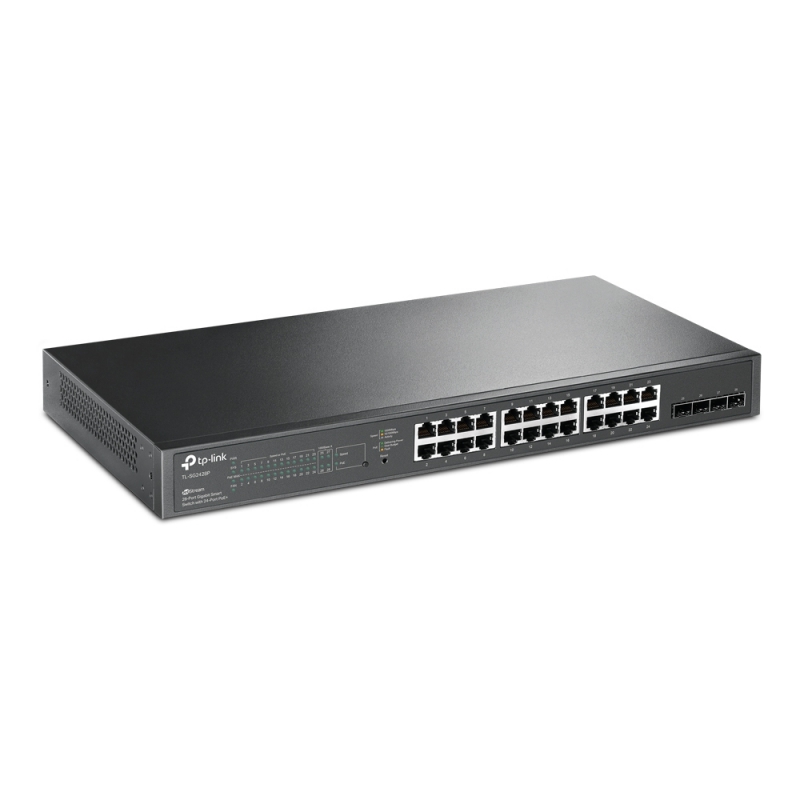

TP-Link JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ (TL-SG2428P)
$545.00
TP-Link JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ and 4 Gigabit SFP slots, featuring Omada SDN management and a 250W PoE budget.
2 in stock
Description
Weight dimensions
| Width | 440 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
Ports interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP |
Network
| Quality of Service QoS support | Y |
|---|---|
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Auto-negotiation | Y |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| 10G support | N |
| Spanning tree protocol | Y |
| Copper ethernet cabling technology | 10BASE-T,10BASE-TX |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| VLAN support | Y |
| Port mirroring | Y |
| Virtual LAN features | MAC address-based VLAN,Protocol-based VLAN,Voice VLAN |
| Broadcast storm control | Y |
| Rate limiting | Y |
Power
| Power consumption max | 308.6 W |
|---|---|
| Heat dissipation | 1052.94 BTU/h |
Security
| Loop protection | Y |
|---|---|
| BPDU filteringprotection | Y |
| IP-MAC-Port binding | Y |
| Authentication type | RADIUS |
| DHCP features | DHCP relay,DHCP server,DHCP snooping,DHCPv6 client |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Access Control List ACL | Y |
| IGMP snooping | Y |
Packaging data
| Rack mount kit | Y |
|---|---|
| User guide | Y |
Data transmission
| Forwarding rate | 41.7 Mpps |
|---|---|
| MAC address table | 8000 entries |
| Number of queues | 8 |
| Switching capacity | 56 Gbit/s |
Management features
| Web-based management | Y |
|---|---|
| ARP inspection | Y |
| System event log | Y |
Optical fiber
| Fiber ethernet cabling technology | 1000BASE-X |
|---|
Other features
| Flow control support | Y |
|---|---|
| Number of VLANs | 4000 |
Power over Ethernet PoE
| Power over Ethernet PoE | Y |
|---|---|
| Power over Ethernet PoE ports quantity | 24 |
Operational conditions
| Storage temperature T-T | -40 – 70 °C |
|---|---|
| Operating relative humidity H-H | 10 – 90% |
| Storage relative humidity H-H | 5 – 90% |
| Operating temperature T-T | 0 – 50 °C |
Design
| Product colour | Black |
|---|---|
| Rack mounting | Y |
| Number of fans | 2 fan(s) |
Performance
| Auto MDIMDI-X | Y |
|---|
Certificates
| Certification | CE, FCC, RoHS |
|---|
Multicast features
| Multicast support | Y |
|---|
Features
| Firmware upgradeable | Y |
|---|---|
| Security algorithms | HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS |
Packaging content
| Cables included | AC |
|---|
Additional information
| Dimensions | 53 × 34 × 11 cm |
|---|---|
| Cable Management | |
| Ports | 24 x 10/100/1000 mbps rj45 ports (ports 1–24 support 802.3af/at poe+), 4 x gigabit sfp slots |
