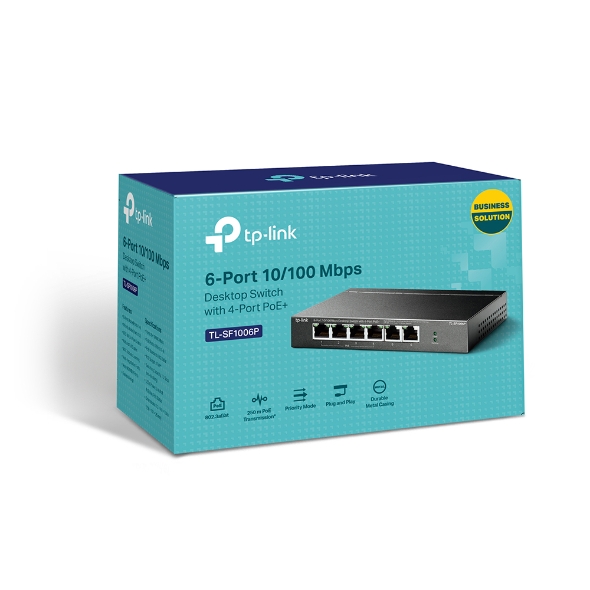

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

$77.49

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ supporting up to 67W total budget and Extend Mode up to 250m.

16 in stock

16 in stock

SKU: TL-SF1006P Categories: Network Switches, Networking & Internet Tags: 10/100Mbps, 6-Port Switch, Network Switch, PoE Switch, TL-SF1006P, TP-Link Brand: TP-LINK

Description

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Plug and play with no configuration required

HARDWARE FEATURES

Interface	6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+) AUTO Negotiation AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate	0.8928 Mpps
PoE Ports (RJ45)	Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 67 W
Mac Address Table	2K
Jumbo Frame	2 KB
Switching Capacity	1.2 Gbps
Dimensions ( W x D x H )	6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Max Power Consumption	1.9 W (220 V / 50 Hz, no PD connected) 74 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation	6.48 BTU/h (no PD connected) 252.34 BTU/h (with 67 W PD connected)

SOFTWARE FEATURES

Transmission Method	Store-And-Forward
Advanced Functions	Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

Certification	FCC, CE, RoHS
Package Contents	TL-SF1006P Power Adapter Installation Guide
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉)

Additional information

Ports	6 x 10/100 mbps rj45 ports (4 poe+ ports)
Standards And Protocols	ieee 802.3i, ieee 802.3u, ieee 802.3x, ieee 802.3af, ieee 802.3at
Power Supply	external power adapter (output: 53.5 vdc / 1.31 a)
Power Delivery	up to 30w per poe port, total budget 67w
Switching Capacity	1.2 gbps
Packet Forwarding Rate	0.89 mpps
Mac Address Table	2 k
Dimensions	158 × 101 × 25 mm
Brand	TP-LINK
Mpn	TL-SF1006P
Gtin	1210002616317
