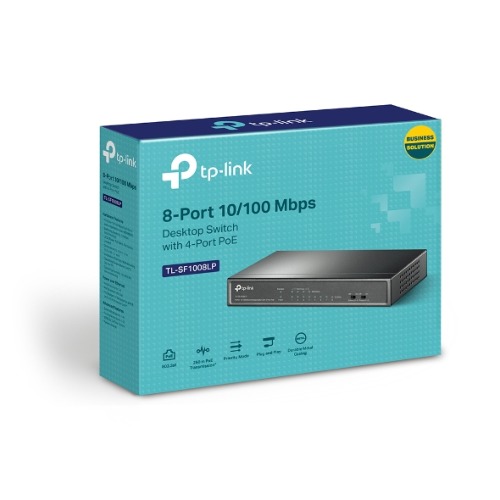

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
$71.60
TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE, supporting up to 41W PoE budget and plug-and-play installation.
Out of stock
Description
TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE
- 8× 10/100 Mbps RJ45 ports
- 4× PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required
HARDWARE FEATURES
| Interface |
• 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| PoE Ports (RJ45) |
• Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W |
| Backbound Bandwidth | 1.6 Gbps |
| Mac Address Table | 2K |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption |
• 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max Heat Dissipation |
• 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) |
SOFTWARE FEATURES
| Transmission Method | Store-And-Forward |
| Advanced Functions |
• Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
OTHERS
| Certification | FCC, CE, RoHS |
| Package Contents |
• TL-SF1008LP • Power Adapter • Installation Guide |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Additional information
| Standards And Protocols | |
|---|---|
| Ports | 8 x 10/100 mbps rj45 ports (ports 1-4 support ieee 802.3af poe) |
| Power Supply | |
| Power Delivery | |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Mac Address Table | |
| Dimensions | |
| Brand | |
| Mpn | |
| Gtin |
