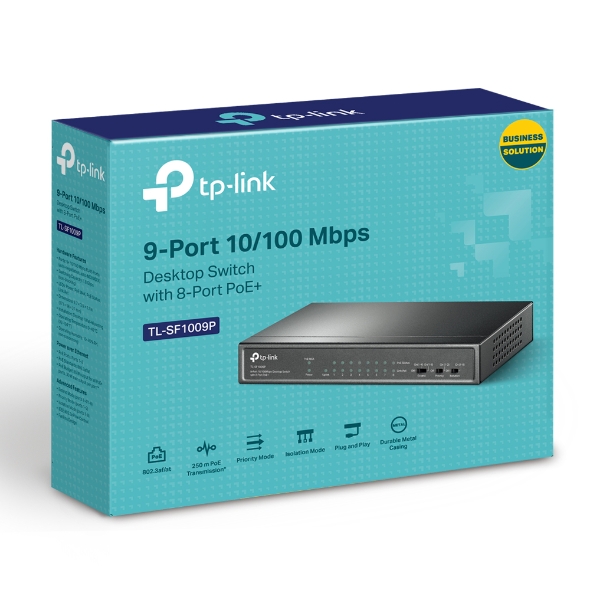

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

$82.21 inc GST

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+, supporting up to 65W total PoE budget and Extend Mode up to 250m.

31 in stock

31 in stock

Warehouse availabilityLIVE
QLD2
NSW12
VIC—
WA5
SA4
TAS—
ACT—
NT—

Call for corporate/edu qty purchases

GTIN: 1210002616393MPN: TL-SF1009P SKU: TL-SF1009P Categories: , Tags: , , , , , Brand:

Description

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+

  • 9× 10/100 Mbps RJ45 ports
  • 8× PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for 8 PoE ports*
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play with no configuration required

HARDWARE FEATURES

Interface
  • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 1.3392 Mpps
PoE Ports (RJ45)
  • Standard: 802.3 af/at compliant
  • PoE Ports: Ports 1–8
  • Power Supply: 65 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1.8 Gbps
Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption
  • 3.6 (220/50 Hz. no PD connected)
  • 77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
  • 12.28 BTU/h (no PD connected)
  • 262.84 BTU/h (with 65 W PD connected)

SOFTWARE FEATURES

Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
  • Priority Mode Button (Ports 1–2)
  • Isolation Mode Button (Ports 1–8)
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Additional information

Weight 0.5 kg
Dimensions 17.1 × 9.8 × 2.7 cm
Ports

Standards And Protocols

Power Delivery

Switching Capacity

Packet Forwarding Rate

Mac Address Table

Brand

Mpn

Gtin
