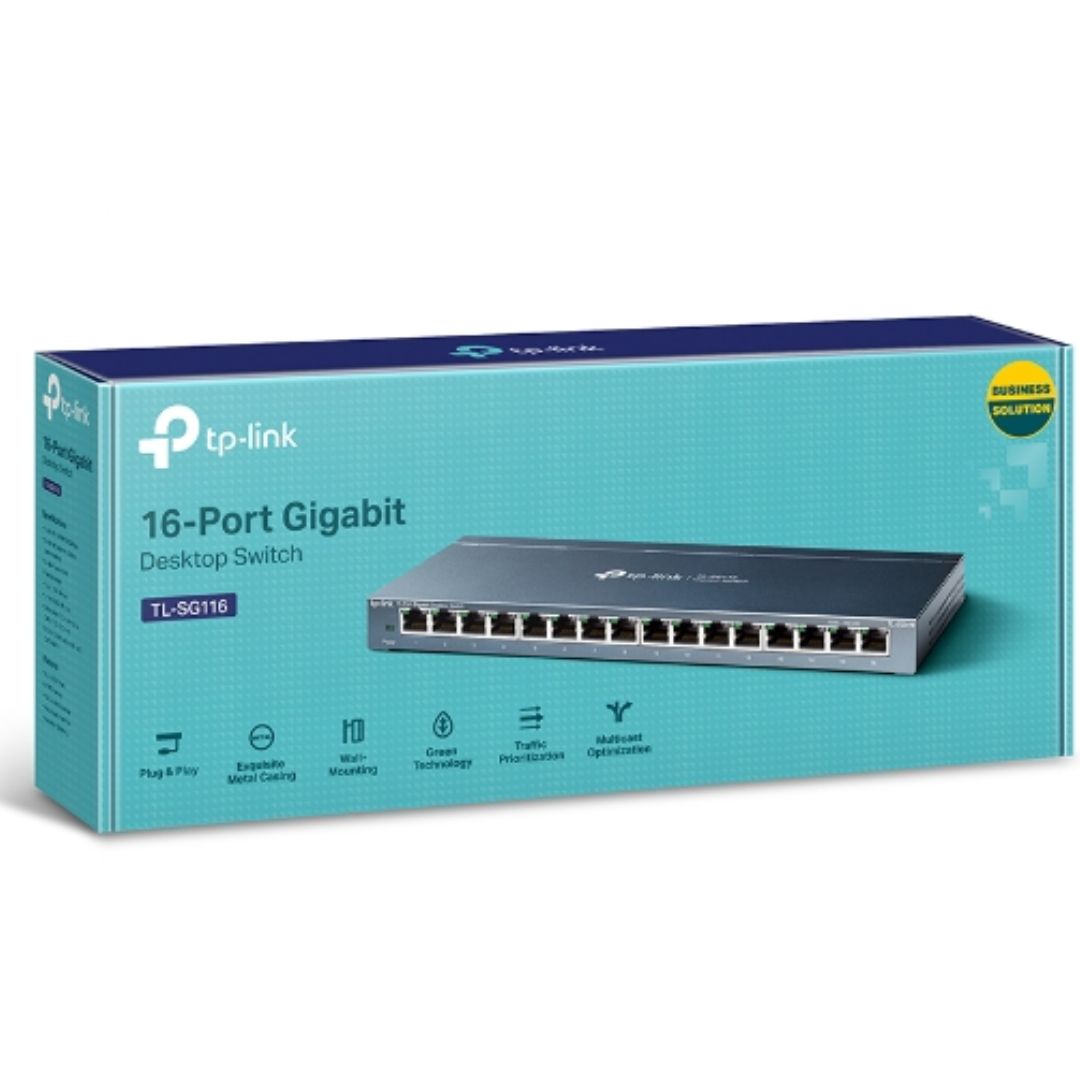

TP-Link TL-SG116 16-Port Unmanaged Gigabit Desktop/Wall Mounting Switch
$109.00
TP-Link TL-SG116 16-Port Unmanaged Gigabit Desktop/Wall Mounting Switch with 32Gbps switching capacity, fanless design, and energy-saving technology.
64 in stock
Description
TP-Link TL-SG116 16-Port Unmanaged Gigabit Desktop/Wall Mounting Switch 32Gbps Capacity 23.81Mpps 8K MAC 4.1Mb Buffer Fanless
16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Steel housing, desktop or wall-mounting design
Support 802.1p/DSCP QoS and IGMP Snooping function
Plug and play, with no configuration needed
HARDWARE FEATURES
| Standards and Protocols | IEEE 802.3i /802.3u /802.3ab /802.3x /802.1p |
| Interface | 16 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | Fanless |
| Power Consumption | Maximum: 10.0W |
| External Power Supply | External Power Adapter (Output: 12VDC / 1.0A) |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 11.26 x 4.4 x 1.0 in. (286*111.7*25.4 mm) |
PERFORMANCE
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
SOFTWARE FEATURES
| Advanced Features | Green Technology 802.3X Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transfer Method | Store and Forward |
OTHERS
| Certification | CE, FCC ,RoHS |
| Package Contents | 16-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Standards And Protocols | ieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee 802.3x, ieee 802.1p |
|---|---|
| Ports | |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Buffer Size | |
| Mac Address Table | |
| Enclosure Material | |
| Dimensions | |
| Power Supply | |
| Power Consumption Max | |
| Mounting | |
| Brand | |
| Mpn | |
| Gtin |
