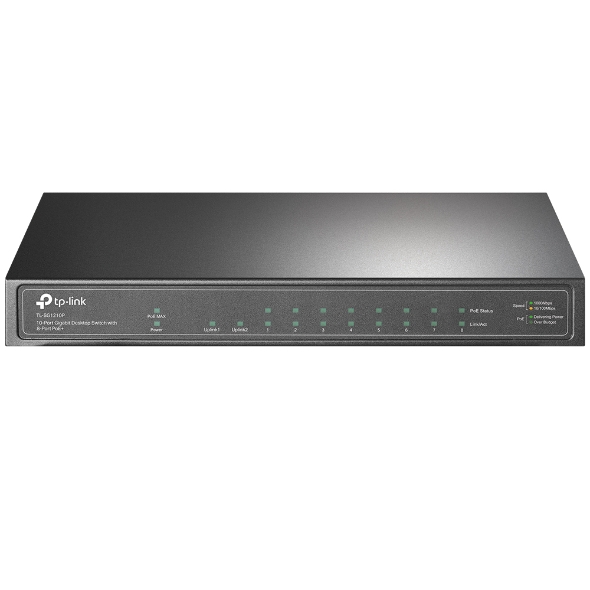

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
$129.00
TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+, 9 Gigabit RJ45 ports, 1 Gigabit SFP port, and 63W total PoE power budget.
45 in stock
Description
TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+
10-Port Gigabit Desktop Switch with 8-Port PoE+
9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
With 8 PoE+ ports, transfers data and power on one single cable
Working with IEEE 802.3af/at compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
Easy to use, with no configuration and installation needed
HARDWARE FEATURES
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports 1 10/100/1000Mbps RJ45 Port 1 Gigabit SFP Slot |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Backup Bandwidth | 20 Gbps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port 8 PoE Power Budget: 63W |
| Mac Address Table | 4K |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz. no PD connected) 78.13 W (220/50Hz. with 63W PD connected) |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) 266.42 BTU/h (with 63W PD connected) |
SOFTWARE FEATURES
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs EEE802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
OTHERS
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
Additional information
| Ports | |
|---|---|
| Standards And Protocols | ieee 802.3i, ieee 802.3u, ieee 802.3ab, ieee 802.3af, ieee 802.3at, ieee 802.3x, ieee 802.1p |
| Power Delivery | |
| Switching Capacity | |
| Packet Forwarding Rate | |
| Mac Address Table | |
| Power Supply | |
| Brand | |
| Mpn | |
| Gtin |
